Product Details
Place of Origin: CHINA
Brand Name: YM
Certification: High-tech Enterprise Certificate
Model Number: UV Light Module 135105
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 100000
Product Name: |
UV Light Module 135105 |
Power: |
350W |
Module Size: |
135mm*105mm*3.0mm |
Luminous Size: |
135mm*81mm |
Voltage: |
48-53V |
Current: |
4.5-6.3A |
LED Chips: |
Epileds/ LG /Seoul |
Encapsulation Process: |
High Temperature Quartz Lens Package Module |
View Angle Of The Lens: |
60, 120 Degree |
Warranty: |
1 Years |
Product Name: |
UV Light Module 135105 |
Power: |
350W |
Module Size: |
135mm*105mm*3.0mm |
Luminous Size: |
135mm*81mm |
Voltage: |
48-53V |
Current: |
4.5-6.3A |
LED Chips: |
Epileds/ LG /Seoul |
Encapsulation Process: |
High Temperature Quartz Lens Package Module |
View Angle Of The Lens: |
60, 120 Degree |
Warranty: |
1 Years |

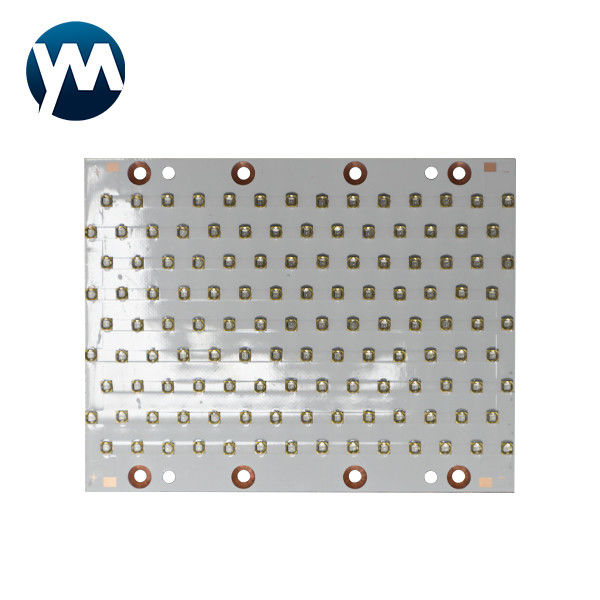

UV Light Module 350W module Surface light source curing uv led curing system
| Product Name | UV Light Module 135105 |
| Power | 350W |
| Color | UV |
| Number of lamp beads | 126 pcs |
| Diode type | 3535 smd |
| Lens Material of Diode | Silica gel or quartz |
| View Angle of the Lens | 60, 120 degree |
| Module size | 135mm*105mm*3.0mm |
| Luminous Size | 135mm*81mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 48-53V |
| Current | 4.5-6.3A |
| Chip Material | Seoul,LG,Epileds |
| Encapsulation process | High temperature quartz lens package module |
| Module material | 3.0mm Copper substrate |
| Lifespan (hours) | 20000-30000 |
| Warranty | 2 years |
| Application | Apply in various UV printing industries, painting,UV inks, UV glues, and touch screens. |
| Place of Origin | Shenzhen, Guangdong, China |
Why Choose Us
1) Good Price
We offer the manufacturer's direct selling price.
2) Quality Assurance
We have our own R&D team,Every product has a professional test before shipment.
3) Customization options
We provide customized products according to your needs.
4) Post-sales customer support
We provide trainned customer service personal for our customers to solve all your problems.
FAQ
Q1. Is your company a manufacturer or a distributor?
A. We are a manufacturing company based in Shenzhen.For the past 7 years we havebeen producing and developing UV LED products.
Q2. Can we customize the product?
A. Yes! We can produce according to your requirements or technical drawings.
Q3. What is your main products?
A. UV LED Lamp Bead; UV LED Module; UV LED Single Light.
Q4. How do i know what wavelength is suitable for me?
A. Normally Wavelength of UV LED lamps is between 365-405nm, inkjet printers use 395nm,
printing machine use 385/395nm , UV glue curing requires 365nm.
Q5. How to place an order?
A. Contact our sales representatives by email, skype or make a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose T/T,L/C to send us payment.
Matters needing attention
Warm tips, in order to make our products play the best performance and reduce customer failure in the use of products, please note:
1) During the whole process of use, all people who are in direct contact with UVLED should take measures to prevent and eliminate static electricity, and do not touch the UV light emitting diode directly with their hands.
2) When welding, attention should be paid to the welding time and temperature, and the positive and negative polarities should be distinguished.
For high power weliding using UV LED the following points should be followed
1) The operation of welding should not exceed the time limit;
2)Make sure that the welding temprature is below 260C degrees at all time.
If you have other needs, please contact us to provide you with the best solution.
