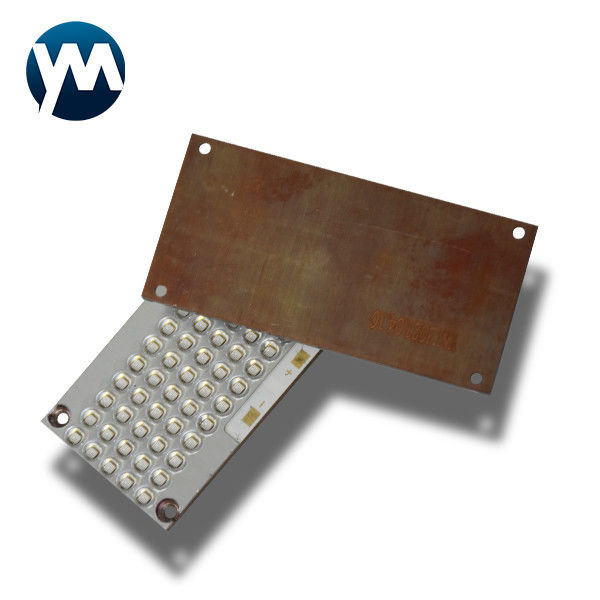

200W SMD COB UV LED Copper Substrate Printing Industries

Product Details

Place of Origin: CHINA

Brand Name: YM

Certification: High-tech Enterprise Certificate

Model Number: UV LED COB Module 6230

Payment & Shipping Terms

Minimum Order Quantity: Negotiate

Price: Negotiate

Packaging Details: Carton

Delivery Time: 7-10 work days

Payment Terms: T/T

Supply Ability: 100000

Get Best Price
Highlight:

COB UV LED 200W

,

200 Watt COB UV LED

,

3.0mm COB Copper Substrate

Name:
UV LED Module 6230
Size:
62*30*3.0mm
Voltage:
51V-57V
Current:
2.5A-3.5A
Name:
UV LED Module 6230
Size:
62*30*3.0mm
Voltage:
51V-57V
Current:
2.5A-3.5A
200W SMD COB UV LED Copper Substrate Printing Industries

200W SMD COB UV LED Copper Substrate Printing Industries 365nm 385nm 395nm 405nm​



COB UV LED Module Product Description

The COB UV LED module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.

Specification of COB UV LED Module
Product Name COB UV LED Module 6230
Power 200W
Color UV
Number of lamp beads 75 pcs
Diode type COB smd
Lens Material of Diode quartz
View Angle of the Lens 60, 120 degree
Module size 62mm*30nm*3.0mm
Luminous Size 62mm*20mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 51-57V
Current 2.5-3.5A
Chip Material LG,Seoul,Epileds
Encapsulation process High temperature quartz lens package lamp beads
Module material 3.0mm COB Copper substrate
Lifespan (hours) 20000-30000
Warranty 2 years
Application Apply in various UV printing industries, painting,
Place of Origin Shenzhen, Guangdong, China

Application of UV LED Module

UV LED Module are mainly used in printing curing, anti-counterfeiting identification, purification (water, air, etc.) fields, computer data storage and military. Moreover, with the development of technology, new applications will continue to appear to replace the original technology and products. Ultraviolet LEDs have broad market application prospects.



why choose us

1. Well-known chip material

2. 99.99% gold wire bonding

3. 2 years warranty

4. Over 10 years work experience technical service team

5. 24 hours service Professional sales team

COB UV LED Module the Ceramics package, it has a high reliability, good heat dissipation, are widely used in the disinfection, curing, printing and other fields, for example, ultraviolet disinfection, uv curing, uv ink curing, printing.

200W SMD COB UV LED Copper Substrate Printing Industries 0200W SMD COB UV LED Copper Substrate Printing Industries 1

If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
