Product Details
Place of Origin: CHINA
Brand Name: YM
Certification: High-tech Enterprise Certificate
Model Number: 3535 SMD Chip-QLG-16mm
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 100000
Power: |
3W |
Size: |
16mm*16mm |
Voltage: |
3.4-3.8V |
Current: |
500-700MA |
View Angle Of The Lens: |
60, 120 Degree |
Wavelength: |
365nm, 385nm, 395nm, 405nm |
Power: |
3W |
Size: |
16mm*16mm |
Voltage: |
3.4-3.8V |
Current: |
500-700MA |
View Angle Of The Lens: |
60, 120 Degree |
Wavelength: |
365nm, 385nm, 395nm, 405nm |

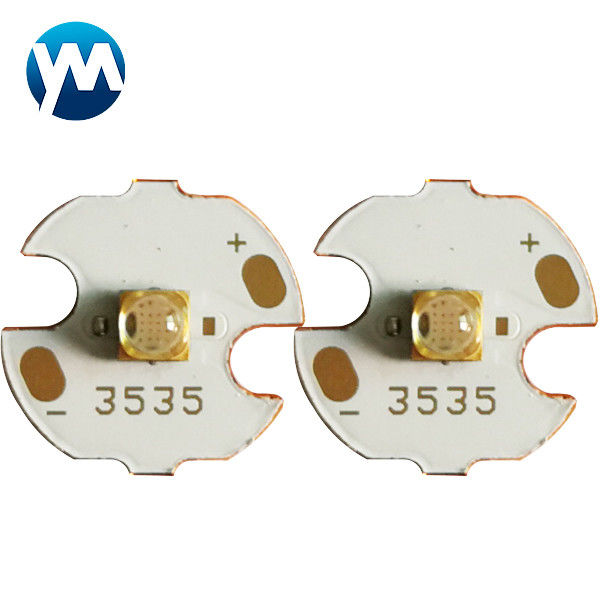

3W UV LED Chip 16mm Copper Plate For UV LED Curing UV Module 365nm 395nm
Description of UV LED Chip
The UV LED Chip lamp beads can be water-cooled or air-cooled.
| Item | 3535 SMD Chip-QLG-16mm |
| Power | 3W |
| Emitting color | UV |
| Diode type | 3535 smd |
| Lens Material of Diode | quartz |
| View Angle of the Lens | 60, 120 degree |
| size | 16mm*16mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 3.4-3.8V |
| Curent | 500-700MA |
| Chip Material | LG, Seoul, Epileds |
| Welding temperature | ≤220 degrees |
| Lifespan (hours) | 20000-30000 |
| Warranty | 1 years |
| Application | Apply in various UV printing industries, painting, UV lnk,and UV glue. |
| Place of Origin | Shenzhen, Guangdong, China |
Feature of UV LED Chips
• High power and efficiency, high reliability
• Long operation lifetime, low light failure
• Environmental protection, energy saving
• Zener diode protection device
Matters needing attention
Attention should be paid to welding high-power UV LED:
1) The welding time should not exceed 3S;
2) Welding temperature should be less than 260 degrees Celsius.
3) Reflow welding is allowed only once.
If you have other needs, please contact us to provide you with the best solution.
Thank you for your attention.
