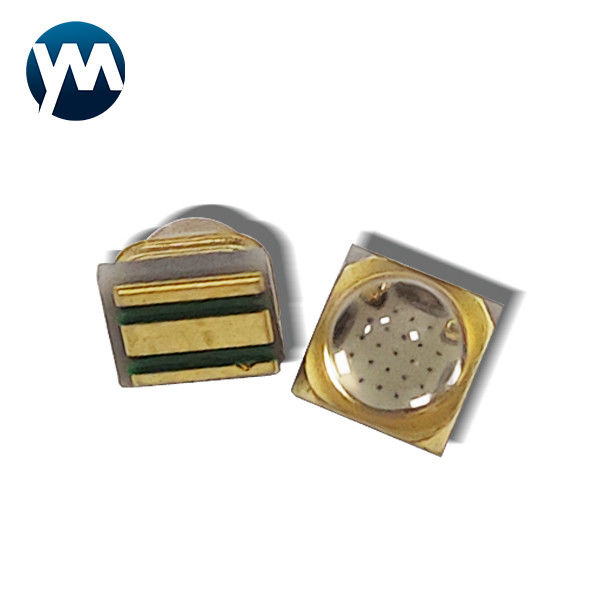

High Power 3535 3W LED SMD Lamp Beads Quartz Diode 365nm 385nm 395nm

Name: High Power 3535 3W LED SMD Lamp Beads Quartz Diode 365nm 385nm 395nm
Brand: shenzhen yuanming co., ltd
SKU: 3535 SMD Chip-Q-LG
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: YM

Certification: High-tech Enterprise Certificate

Model Number: 3535 SMD Chip-Q-LG

Payment & Shipping Terms

Minimum Order Quantity: Negotiate

Price: Negotiate

Packaging Details: Carton

Delivery Time: 7-10 work days

Payment Terms: T/T

Supply Ability: 100000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                3W UV LED SMD lamp beads, 3535 quartz diode UV LED, 365nm high power SMD LED


Name:	3535 SMD Chip-Q-LG	Power:	3W
Voltage:	3.4-3.8V	Current:	0.5-0.7A

Name:	3535 SMD Chip-Q-LG
Power:	3W
Voltage:	3.4-3.8V
Current:	0.5-0.7A

High Power 3535 3W LED SMD Lamp Beads Quartz Diode 365nm 385nm 395nm

3535 3W LED SMD High Power Lamp Beads 3535 Smd Quartz Diode 365nm 385nm 395nm

Description of UV LED SMD

The UV LED SMD lamp beads can be water-cooled or air-cooled.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screen

Specification of UV LED SMD


			Item

			3535 SMD Chip-Q-Epileds

			Power

			3W

			Emitting color

			UV

			Diode type

			3535 smd

			Lens Material of Diode

			quartz

			View Angle of the Lens

			60 degree, 120 degree

			size

			3.5mm*3.5mm

			Wavelength

			365nm,385nm,395nm,405nm

			Voltage

			3.4-3.8V

			Curent

			500-700ma

			Chip Material

			LG, Seoul, Epileds

			Welding temperature

			≤220 degrees

			Lifespan (hours)

			20000-30000

			Warranty

			1 years

			Application

			Apply in various UV printing industries, painting, UV lnk,and UV glue.

			Place of Origin

			Shenzhen, Guangdong, China

High Power 3535 3W LED SMD Lamp Beads Quartz Diode 365nm 385nm 395nm 0

why choose us

1. Well-known chip material

2. 99.99% gold wire bonding

3. 2 years warranty

4. Over 10 years work experience technical service team

5. 24 hours service Professional sales team

6. Free Sample is available

7. Fast delivery

8.100% QC inspection Before Shippment

9. Aiming at the consult of "high quality, zero defect”, give you the best quality, best service.

Application of UV LED SMD

UV curing systems are widely used by industrial manufacturers in printing, automotive, medical devices,

electronics and packaging. They are also used in wood finishing applications including coating and

adhesive bonding for assembly, as well as sealing and screen.

If you have other needs, please contact us to provide you with the best solution.
