Product Details
Place of Origin: CHINA
Brand Name: YM
Certification: High-tech Enterprise Certificate
Model Number: UV LED Flashlight COB Module 3634
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 100000
Product Name: |
UV LED Flashlight COB Module 3634 |
Power: |
72W |
Voltage: |
24V |
Current: |
3A |
View Angle Of The Lens: |
180 Degree |
Module Size: |
36mm*34mm |
Product Name: |
UV LED Flashlight COB Module 3634 |
Power: |
72W |
Voltage: |
24V |
Current: |
3A |
View Angle Of The Lens: |
180 Degree |
Module Size: |
36mm*34mm |

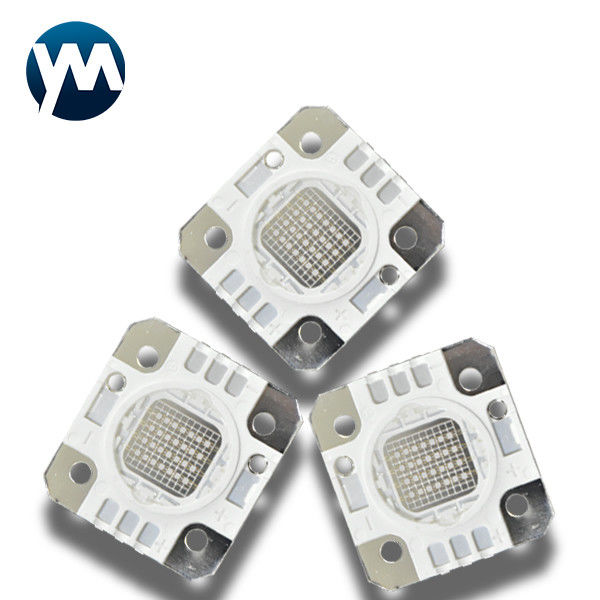

UV LED Flashlight COB Module 72W UV Curing Lamp 365nm 395nm uv led
Description of UV LED Flashlight Module:
UV LED Flashlight Module can be applied with either Water-cooling or wind-cooling method.
Other curing size and voltage can be designed according your requirement,
including mix wavelength special wavelength and curing size.
High efficiency and low consumption.
Apply in various printing industries, painting, and glue.
Specification of UV LED Flashlight COB Module:
| Product Name | UV LED Flashlight COB Module 3634 |
| Power | 72W |
| Color | UV |
| Number of lamp beads | 28 pcs |
| Diode type | COB smd |
| Lens Material of Diode | quartz |
| View Angle of the Lens | 180 degree |
| Module size | 36mm*34mm |
| Luminous Size | 20mm*20mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 24V |
| Current | 3A |
| Chip Material | Epileds |
| Encapsulation process | High temperature quartz lens package COB Module |
| Module material | 1.5mm COB Aluminum plate |
| Lifespan (hours) | 20000-30000 |
| Warranty | 2 years |
| Application | Apply in various UV printing industries, painting, |
| Place of Origin | Shenzhen, Guangdong, China |
FAQ
Q1. Are you a factory?
A: Yes! We are a factory in Shenzhen. We have been producing UV LED products for seven years.
Q2. What are your main products?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV equipment.
Q3. How about the quality of the leds?
A: Please do not worry about the quality. Our company is the main manufacturer of LEDs in China.
The payment can be T/T transaction/ alibaba payment.
why choose us
1. Well-known chip material
2. 99.99% gold wire bonding
3. 2 years warranty
4. Over 10 years work experience technical service team
5. 24 hours service Professional sales team
6. Free Sample is available
7. Fast delivery
8.100% QC inspection Before Shippment
9. Aiming at the consult of "high quality, zero defect”, give you the best quality, best service.
If you have other needs, please contact us to provide you with the best solution.
