Product Details
Place of Origin: CHINA
Brand Name: YM
Certification: High-tech Enterprise Certificate
Model Number: UV LED Module 260120
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 100000
Product Name: |
UV LED Module 260120 |
Power: |
600W |
Module Size: |
260mm*120mm*2.0mm |
Luminous Size: |
195mm*94mm |
Voltage: |
68-76V |
Current: |
5-7A |
LED Chips: |
LG/Epileds/ Seoul |
Encapsulation Process: |
High Temperature Quartz Lens Package |
View Angle Of The Lens: |
60, 120 Degree |
Warranty: |
2 Years |
Product Name: |
UV LED Module 260120 |
Power: |
600W |
Module Size: |
260mm*120mm*2.0mm |
Luminous Size: |
195mm*94mm |
Voltage: |
68-76V |
Current: |
5-7A |
LED Chips: |
LG/Epileds/ Seoul |
Encapsulation Process: |
High Temperature Quartz Lens Package |
View Angle Of The Lens: |
60, 120 Degree |
Warranty: |
2 Years |

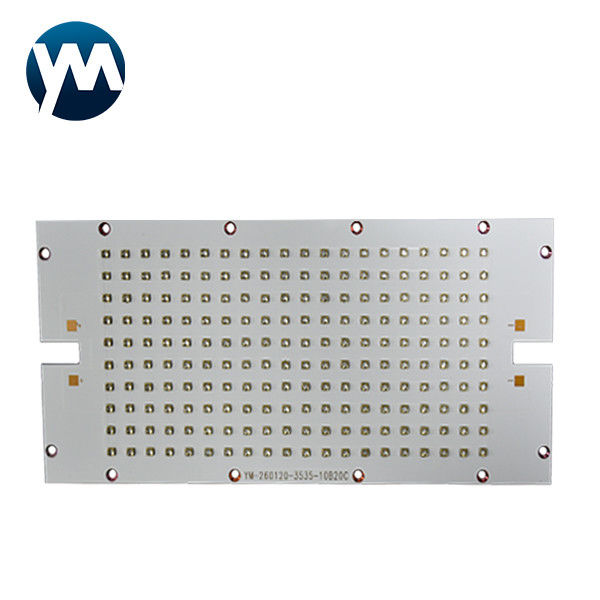

UV LED Module 600W led module light uv led curing lamp cob led module
| Product Name | UV LED Module 260120 |
| Power | 600W |
| Color | UV |
| Number of lamp beads | 200 pcs |
| Diode type | 3535 smd |
| Lens Material of Diode | Silica gel or quartz |
| View Angle of the Lens | 60, 120 degree |
| Module size | 260mm*120mm*2.0mm |
| Luminous Size | 195mm*94mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 68-76V |
| Current | 5-7A |
| Chip Material | LG,Seoul,Epileds |
| Encapsulation process | High temperature quartz lens package |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 20000-30000 |
| Warranty | 2 years |
| Application | UV printing , paints, UV inks, UV glues, and touch screens |
| Place of Origin | Shenzhen, Guangdong, China |
Why Choose Us
1) Good Price
We offer the manufacturer's direct selling price.
2) Quality Assurance
We have our own R&D team,Every product has a professional test before shipment.
3) Customized Service
We can customize products as your need.
FAQ
Q1. Are you a factory?
A: Yes! We are a factory in Shenzhen. We have been producing UV LED products for seven years.
Q2. What are your main products?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV equipment.
Q3. How to process the order?
A: 1. Let us know your requirement.
2. We make a quotation and provide our advice.
3. We will make a PI after you confirm the quotation.
4. You make the payment after check the details.
5. We arrange the delivery asap.
Q4. How about the quality of the leds?
A: Please do not worry about the quality. Our company is the main manufacturer of LEDs in China.
The payment can be T/T transaction/ alibaba payment.
Q5. Can adjustable of UV intensity ?
A: Yes, the intensity is 0-100% adjustable. We designed different.
Q6. How many days do you need for preparing order?
A: We need 3-7 days for normal order, Custom product cycle is 15-20 days.
Q7. Could I put my logo on it?
A: Of course. The logo can be made according to your requirements once you reached our MOQ.
Q8. What's your packaging?
A: We have carton. Welcome to customized if you need.
Q9. About logistics?
A: Usually ,we ship the products by express , But we can arrange shipment according to your need.
Attention should be paid to welding high-power UV LED:
1) The welding time should not exceed 3S;
2) Welding temperature should be less than 260 degrees Celsius.
3) When welding, distinguish positive and negative polarity, and avoid lens to avoid damage to lens.
4) Do a good job of heat dissipation measures, especially high-power UVLED as far as possible to ensure adequate radiator area.
5) In order to prolong the lifetime of ultraviolet light emitting diodes, it is recommended to use a stable constant current driving power supply or IC instead of a constant voltage driving power supply or IC.
If you have other needs, please contact us to provide you with the best solution.
