Product Details
Place of Origin: CHINA
Brand Name: YM
Certification: High-tech Enterprise Certificate
Model Number: UV LED Module 7070
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 100000
Product Name: |
UV LED Module 7070 |
Power: |
40W |
Module Size: |
70mm*70mm*2.0mm |
Luminous Size: |
30mm*30mm |
Voltage: |
13-15V |
Current: |
2-3A |
LED Chips: |
Optional(LG/Epileds/ Seoul) |
Encapsulation Process: |
2.0mm High Temperature Quartz Lens Package |
View Angle Of The Lens: |
30,60,120 Degree |
Warranty: |
2 Years |
Product Name: |
UV LED Module 7070 |
Power: |
40W |
Module Size: |
70mm*70mm*2.0mm |
Luminous Size: |
30mm*30mm |
Voltage: |
13-15V |
Current: |
2-3A |
LED Chips: |
Optional(LG/Epileds/ Seoul) |
Encapsulation Process: |
2.0mm High Temperature Quartz Lens Package |
View Angle Of The Lens: |
30,60,120 Degree |
Warranty: |
2 Years |

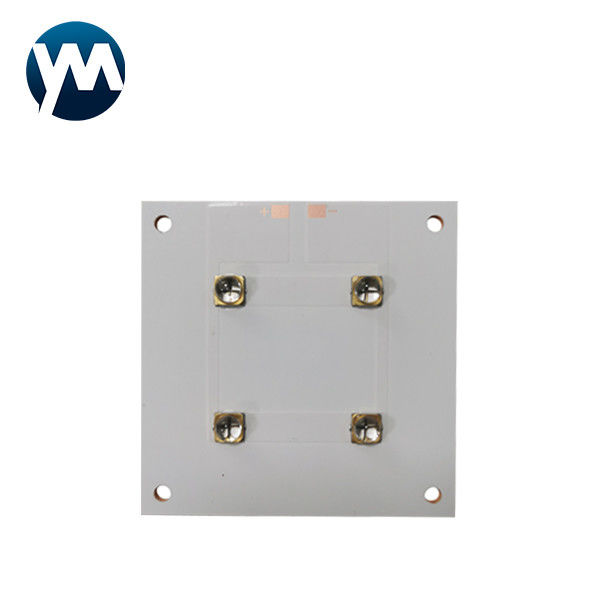

UV LED Module 40W uv lamp curing printing high power UV LED module
| Product Name | UV LED Module 7070 |
| Power | 40w |
| Color | UV |
| Number of lamp beads | 4 pcs |
| Diode type | 6565/6868 smd |
| Lens Material of Diode | Silica gel or quartz |
| View Angle of the Lens | 30, 60, 120 degree |
| Module size | 70mm*70mm*2.0mm |
| Luminous Size | 30mm*30mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 13-15V |
| Current | 2-3A |
| Chip Material | LG,Seoul,Epileds |
| Encapsulation process | High temperature quartz lens package |
| Lifespan (hours) | 20000-30000 |
| Warranty | 2 years |
| Application | Apply in various UV printing industries, painting, UV lnk,and UV glue. |
| Place of Origin | Shenzhen, Guangdong, China |
FAQ
Q1. Are you a factory?
A. Yes! We are factory in Shenzhen. We have been producing UV LED products for seven years.
Q2. What is your main products?
A. UV LED Lamp Bead; UV LED Module; UV LED Single Light and UV equipment.
Q3. Do you have any MOQ limit for led light order?
No! One is also acceptable.
Q4. Can we customize the product?
A. Yes! We can produce according to your requirements or technical drawings.
Q5: How to process the order?
A: 1. Let us know your requirement.
2. We make a quotation and provide our advice.
3. We will make a PI after you confirm the quotation.
4. You make the payment after check the details.
5. We arrange the delivery asap.
Q6. How long does it take for my order to be shipped?
A. It usually takes 3-7 days, depending on the quantity.
Q7. How many years of warranty of your products?
A: We offer 1 year warranty time. If there is any problem during the warranty time, please
contact us and we will change or repair them for you.
Matters needing attention
Attention should be paid to welding high-power UV LED:
1) The welding time should not exceed 3S；
2) Welding temperature should be less than 260 degrees Celsius.
3) Reflow welding is allowed only once.
4) When welding, distinguish positive and negative polarity, and avoid lens to avoid damage to lens.
If you have other needs, please contact us to provide you with the best solution.
