Product Details
Place of Origin: CHINA
Brand Name: YM
Certification: High-tech Enterprise Certificate
Model Number: UV LED Module 9513
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 100000
Product Name: |
UV LED Module 9513 |
Power: |
110W |
Module Size: |
95mm*13mm*2.0mm |
Luminous Size: |
83mm*7mm |
Voltage: |
71-82V |
Current: |
1-1.5A |
LED Chips: |
Optional(LG/Epileds/ Seoul) |
Encapsulation Process: |
2.0mm High Temperature Quartz Lens Package |
View Angle Of The Lens: |
30,60,90,120 Degree |
Warranty: |
2 Years |
Product Name: |
UV LED Module 9513 |
Power: |
110W |
Module Size: |
95mm*13mm*2.0mm |
Luminous Size: |
83mm*7mm |
Voltage: |
71-82V |
Current: |
1-1.5A |
LED Chips: |
Optional(LG/Epileds/ Seoul) |
Encapsulation Process: |
2.0mm High Temperature Quartz Lens Package |
View Angle Of The Lens: |
30,60,90,120 Degree |
Warranty: |
2 Years |

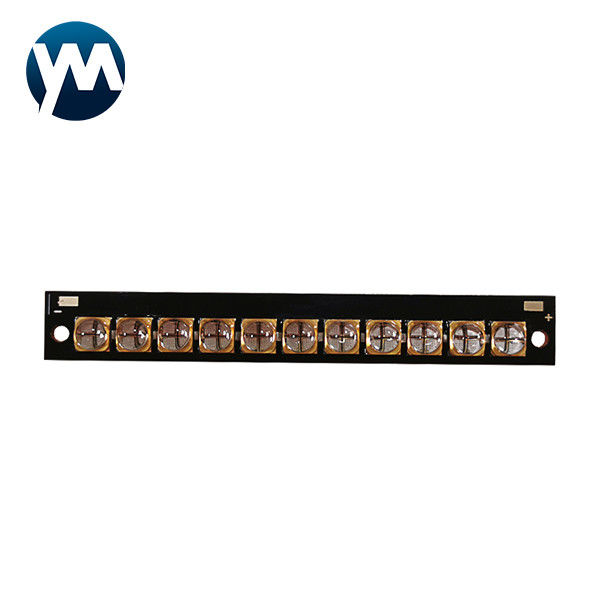

UV LED Module 110w Line light source led uv curing water cooling quartz lens
| Product Name | UV LED Module 9513 |
| Power | 110W |
| Color | UV |
| Number of lamp beads | 11 pcs |
| Diode type | 6565/6868 smd |
| Lens Material of Diode | Silica gel or quartz |
| View Angle of the Lens | 30, 60, 90, 120 degree |
| Module size | 95mm*13mm*2.0mm |
| Luminous Size | 83mm*7mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 71-82V |
| Current | 1-1.5A |
| Chip Material | LG,Seoul,Epileds |
| Encapsulation process | High temperature quartz lens package |
| Lifespan (hours) | 20000-30000 |
| Warranty | 2 years |
| Application | Apply in various UV printing industries, painting, UV lnk,and UV glue. |
| Place of Origin | Shenzhen, Guangdong, China |
FAQ
Q1. What is your main products?
A. UV LED Lamp Bead; UV LED Module; UV LED Single Light.
Q2. Do you have any MOQ limit for led light order?
No! One is also acceptable.
Q3. Can we customize the product?
A. Yes! We can produce according to your requirements or technical drawings.
Q4: How to process the order?
A: 1. Let us know your requirement.
2. We make a quotation and provide our advice.
3. We will make a PI after you confirm the quotation.
4. You make the payment after check the details.
5. We arrange the delivery asap.
Q5. How long does it take for my order to be shipped?
A. It usually takes 3-7 days, depending on the quantity.
Matters needing attention
Warm tips, in order to make our products play the best performance and reduce
customer failure in the use of products, please note:
1) During the whole process of use, all people who are in direct contact with UVLED
should take measures to prevent and eliminate static electricity, and do not touch the
UV light emitting diode directly with their hands.
2) When welding, attention should be paid to the welding time and temperature,
and the positive and negative polarities should be distinguished.
3) Electrical parameters such as current and voltage should not exceed the rated values.
Attention should be paid to welding high-power UV LED:
1) The welding time should not exceed 3S；
2) Welding temperature should be less than 260 degrees Celsius.
3) Reflow welding is allowed only once.
4) When welding, distinguish positive and negative polarity, and avoid lens to avoid damage to lens.
5) Do a good job of heat dissipation measures, especially high-power UVLED as far as possible
to ensure adequate radiator area.
6) In order to prolong the lifetime of ultraviolet light emitting diodes, it is recommended to use a
stable constant current driving power supply or IC instead of a constant voltage driving power supply or IC.
If you have other needs, please contact us to provide you with the best solution.
