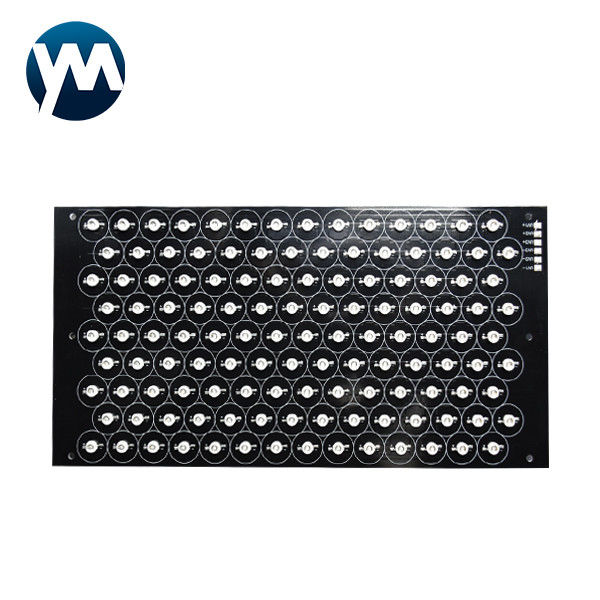

UV LED Module 350W Imitation Lumen Lamp Beads high power uv led

Product Details

Place of Origin: CHINA

Brand Name: YM

Certification: High-tech Enterprise Certificate

Model Number: UV LED Module 365185

Payment & Shipping Terms

Minimum Order Quantity: Negotiate

Price: Negotiate

Packaging Details: Carton

Delivery Time: 7-10 work days

Payment Terms: T/T

Supply Ability: 100000

Get Best Price
Highlight:
Product Name:
UV LED Module 365185
Power:
350W
Module Size:
365mm*185mm*2.0mm
Luminous Size:
125mm*65mm
Voltage:
47-53V
Current:
4.5-6A
LED Chips:
Optional(LG/Seoul/Epileds)
Module Material:
Aluminum Plate
View Angle Of The Lens:
60, 120, 140 Degree
Warranty:
2 Years
Product Name:
UV LED Module 365185
Power:
350W
Module Size:
365mm*185mm*2.0mm
Luminous Size:
125mm*65mm
Voltage:
47-53V
Current:
4.5-6A
LED Chips:
Optional(LG/Seoul/Epileds)
Module Material:
Aluminum Plate
View Angle Of The Lens:
60, 120, 140 Degree
Warranty:
2 Years
UV LED Module 350W Imitation Lumen Lamp Beads high power uv led

UV LED Module 350W Imitation Lumen Lamp Beads high power uv led



UV LED Module Product Description
The UV LED module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
Product Name UV LED Module 365185
Power 350W
Color UV
Number of lamp beads 126 pcs
Diode type 3535 smd
Lens Material of Diode Silica gel
View Angle of the Lens 60, 120, 140 degree
Module size 365mm*185mm*2.0mm
Luminous Size 125mm*65mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 47-53V
Current 4.5-6A
Chip Material LG,Seoul,Epileds
Encapsulation process High temperature quartz lens package
Module material Aluminum plate
Lifespan (hours) 20000-30000
Warranty 2 years
Application Apply in various UV printing industries, painting,
Place of Origin Shenzhen, Guangdong, China


UV LED Module 350W Imitation Lumen Lamp Beads high power uv led 0UV LED Module 350W Imitation Lumen Lamp Beads high power uv led 1UV LED Module 350W Imitation Lumen Lamp Beads high power uv led 2



Why Choose Us
1) Good Price
We offer the manufacturer's direct selling price.
2) Quality Assurance
We have our own R&D team,Every product has a professional test before shipment.
3) Customized Service
We can customize products as your need.
4) After-sale Service
We provide superior and timely pre-sales advice and after-sales service,

Any questions about UV LED will be answered by a professional engineer in 12 hours.





FAQ
Q1. Are you a factory?
A: Yes! We are a factory in Shenzhen. We have been producing UV LED products for seven years.
Q2. What are your main products?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV equipment.
Q3. Do you have any MOQ restrictions on LED light orders?
Do not! One is also acceptable.
Q4. Can we customize products?
A: Yes! We can produce according to your requirements or technical drawings.
Q5. How long is your product warranty for?
A: We provide 1 year warranty. If there are any problems during the warranty period, please
Contact us and we will replace or repair them for you.
Q6. How to process the order?
A: 1. Let us know your requirements.
2. We quote and provide our suggestions.
3. We will make PI after you confirm the quotation.
4. You pay after checking the details.
5. We will arrange delivery as soon as possible.
Q7. How long will it take for my order to be shipped?
A: It usually takes 3-7 days, depending on the quantity.

Q8. All the pictures are real photo?
A: Yes, the pictures of all products on this page are 100% real shoot by us.
Q9. How about the quality of the leds?
A: Please do not worry about the quality. Our company is the main manufacturer of LEDs in China.

Q10. What's the wavelength of the UV Curing LED Lamp?
A: The wavelength of UV LED Lamp usually are 365-405nm, the
wavelength for inkjet printer is 395nm, 385/395nm for printing
machine, 365nm for UV glue.


Matters needing attention

Warm reminder, in order to make our products play the best performance, and to reduce

the failure of customers when using the product, please pay attention to:
1) During the entire use process, all people who are in direct contact with UVLEDs should

take measures to prevent and eliminate static electricity, and do not directly touch UV LEDs with their hands.
2) Pay attention to the welding time and temperature when welding, and distinguish between positive and negative polarity.
3) Electrical parameters such as current and voltage must not exceed the rated value.



If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
