Home > products > UV LED Module > UV LED Module 600W High Power UV LED Chip Quartz Lens Lamp Beads

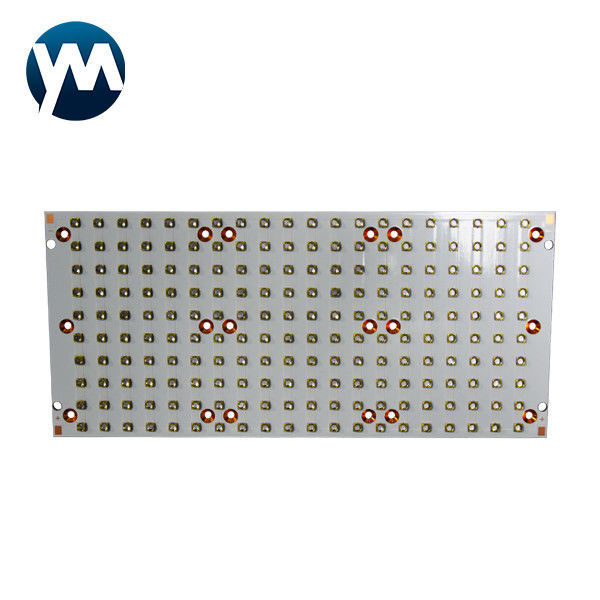

UV LED Module 600W High Power UV LED Chip Quartz Lens Lamp Beads

Product Details

Place of Origin: CHINA

Brand Name: YM

Certification: High-tech Enterprise Certificate

Model Number: UV LED Module 100220

Payment & Shipping Terms

Minimum Order Quantity: Negotiate

Price: Negotiate

Packaging Details: Carton

Delivery Time: 7-10 work days

Payment Terms: T/T

Supply Ability: 100000

Get Best Price
Highlight:

Quartz Lens UV Lamp Beads Module 600W

,

UV Lamp Beads Module 600W

,

Quartz Lens 600W High Power UV Led Chip

Product Name:
UV LED Module 100220
Power:
600W
Module Size:
100mm*220mm*2.0mm
Luminous Size:
94mm*200mm
Voltage:
34-38V*2
Current:
5-7A*2
LED Chips:
LG/Epileds/ Seoul
Encapsulation Process:
High Temperature Quartz Lens Package
View Angle Of The Lens:
60, 90, 120 Degree
Warranty:
2 Years
Product Name:
UV LED Module 100220
Power:
600W
Module Size:
100mm*220mm*2.0mm
Luminous Size:
94mm*200mm
Voltage:
34-38V*2
Current:
5-7A*2
LED Chips:
LG/Epileds/ Seoul
Encapsulation Process:
High Temperature Quartz Lens Package
View Angle Of The Lens:
60, 90, 120 Degree
Warranty:
2 Years
UV LED Module 600W High Power UV LED Chip Quartz Lens Lamp Beads

UV LED Module 600W high power uv led chip quartz lens lamp beads



UV LED Module Product Description
The UV LED module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
We can provide you with customized products.
Product Name UV LED Module 110220
Power 600W
Color UV
Number of lamp beads 200 pcs
Diode type 3535 smd
Lens Material of Diode Silica gel or quartz
View Angle of the Lens 60, 90, 120 degree
Module size 100mm*220mm*2.0mm
Luminous Size 94mm*200mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 34-38V*2
Current 5-7A*2
Chip Material LG,Seoul,Epileds
Encapsulation process High temperature quartz lens package
Module material 2.0mm Copper substrate
Lifespan (hours) 20000-30000
Warranty 2 years
Application Apply in various UV printing industries, painting,
Place of Origin Shenzhen, Guangdong, China


UV LED Module 600W High Power UV LED Chip Quartz Lens Lamp Beads 0UV LED Module 600W High Power UV LED Chip Quartz Lens Lamp Beads 1UV LED Module 600W High Power UV LED Chip Quartz Lens Lamp Beads 2

Why Choose Us
1) Good Price
We offer the manufacturer's direct selling price.
2) Quality Assurance
We have our own R&D team,Every product has a professional test before shipment.
3) Customized Service
We can customize products as your need.
4) After-sale Service
We provide superior and timely pre-sales advice and after-sales service,Any questions about UV LED will be answered by a professional engineer in 12 hours.



FAQ

Q1. Are you a factory?
A: Yes! We are a factory in Shenzhen. We have been producing UV LED products for seven years.
Q2. What are your main products?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV equipment.
Q3. Do you have any MOQ restrictions on LED light orders?
Do not! One is also acceptable.
Q4. Can we customize products?
A: Yes! We can produce according to your requirements or technical drawings.
Q5. How about the quality of the leds?
A: Please do not worry about the quality. Our company is the main manufacturer of LEDs in China.
The payment can be T/T transaction/ alibaba payment.
Q6. Could I put my logo on it?
A: Of course. The logo can be made according to your requirements once you reached our MOQ.
Q7. Can adjustable of UV intensity ?
A: Yes, the intensity is 0-100% adjustable. We designed different.
Q8. How many days do you need for preparing order?
A: We need 3-7 days for normal order, Custom product cycle is 15-20 days.
Q9. What's the wavelength of the UV Curing LED Lamp?
A: The wavelength of UV LED Lamp usually are 365-405nm, the wavelength for inkjet printer is 395nm,

385/395nm for printing machine, 365nm for UV glue.
Q10. What's the brand of LED chip you use?
A: The LED chip brand we use are LG, Epileds, Seoul.
Q11. What's the materials of the lamp and lens ?
A: The materials of lamp is Aluminum, and the lens are quartz.

Q12: Could I put my logo on it?
Of course. The logo can be made according to your requirements once you reached our MOQ.

Q13: What is the cooling method?
A: Most UV LEDs are mainly water-cooing, but we can also do air-cooling,

everything can be customized according to your requirements.


Matters needing attention

Warm tips, in order to make our products play the best performance and reduce customer failure in the use of products, please note:
1) During the whole process of use, all people who are in direct contact with UVLED should take measures to prevent and eliminate static electricity, and do not touch the UV light emitting diode directly with their hands.
2) When welding, attention should be paid to the welding time and temperature, and the positive and negative polarities should be distinguished.
3) Electrical parameters such as current and voltage should not exceed the rated values.

Attention should be paid to welding high-power UV LED:
1) The welding time should not exceed 3S;
2) Welding temperature should be less than 260 degrees Celsius.
3) Reflow welding is allowed only once.
4) When welding, distinguish positive and negative polarity, and avoid lens to avoid damage to lens.
5) Do a good job of heat dissipation measures, especially high-power UVLED as far as possible to ensure adequate radiator area
6) In order to prolong the lifetime of ultraviolet light emitting diodes, it is recommended to use a stable constant current driving power supply or IC instead of a constant voltage driving power supply or IC.



If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
