Product Details
Place of Origin: CHINA
Brand Name: YM
Certification: High-tech Enterprise Certificate
Model Number: UV Light Module 5335
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 100000
Product Name: |
UV Light Module 5335 |
Power: |
140W |
Module Size: |
53mm*35mm*2.0mm |
Luminous Size: |
53mm*15mm |
Voltage: |
45-52V |
Current: |
2-3A |
LED Chips: |
Optional(LG/Epileds/ Seoul) |
Encapsulation Process: |
High Temperature Quartz Lens Package Lamp |
View Angle Of The Lens: |
30, 60, 120 Degree |
Warranty: |
2 Years |
Product Name: |
UV Light Module 5335 |
Power: |
140W |
Module Size: |
53mm*35mm*2.0mm |
Luminous Size: |
53mm*15mm |
Voltage: |
45-52V |
Current: |
2-3A |
LED Chips: |
Optional(LG/Epileds/ Seoul) |
Encapsulation Process: |
High Temperature Quartz Lens Package Lamp |
View Angle Of The Lens: |
30, 60, 120 Degree |
Warranty: |
2 Years |

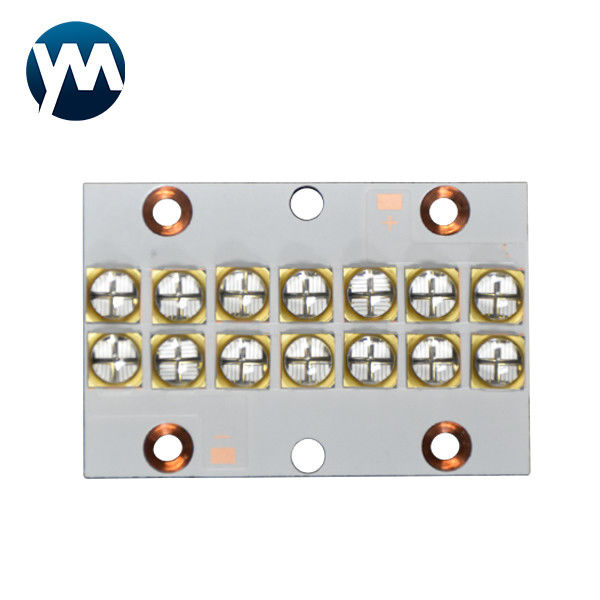

UV Light Module 140W UV curing High power module quartz lens lamp beads
| Product Name | UV Light Module 5335 |
| Power | 140W |
| Color | UV |
| Number of lamp beads | 14 pcs |
| Diode type | 6868 smd |
| Lens Material of Diode | Silica gel or quartz |
| View Angle of the Lens | 30, 60, 120 degree |
| Module size | 53mm*35mm*2.0mm |
| Luminous Size | 53mm*15mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 45-52V |
| Current | 2-3A |
| Chip Material | LG,Seoul,Epileds |
| Encapsulation process | High temperature quartz lens package lamp |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 20000-30000 |
| Warranty | 2 years |
| Application | Apply in various UV printing industries, painting, |
| Place of Origin | Shenzhen, Guangdong, China |
FAQ
Q1. Are you a factory?
A: Yes! We are a factory in Shenzhen. We have been producing UV LED products for seven years.
Q2. What are your main products?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV equipment.
Q3. How about the quality of the leds?
A: Please do not worry about the quality. Our company is the main manufacturer of LEDs in China.
The payment can be T/T transaction/ alibaba payment.
Q4. Can adjustable of UV intensity ?
A: Yes, the intensity is 0-100% adjustable. We designed different.
Q5. How many days do you need for preparing order?
A: We need 3-7 days for normal order, Custom product cycle is 15-20 days.
Q6. What's the wavelength of the UV Curing LED Lamp?
A: The wavelength of UV LED Lamp usually are 365-405nm, the wavelength for inkjet printer is 395nm,
385/395nm for printing machine, 365nm for UV glue.
Q7. What's the brand of LED chip you use?
A: The LED chip brand we use are LG, Epileds, Seoul.
Q8. What's the materials of the lamp and lens ?
A: The materials of lamp is Aluminum, and the lens are quartz.
Q9: Could I put my logo on it?
Of course. The logo can be made according to your requirements once you reached our MOQ.
Q10. What's the lifespan of UV LED ?
A: The lifespan of LED chip is 20,000 hours, if you take care it during
the usage, it usually can be used 2-3 years.
Q11. How many years of warranty of your products?
A: We offer 1 year warranty time. If there is any problem during the warranty time,
please contact us and we will change or repair them for you.
Q12. All the pictures are real photo?
A: Yes, the pictures of all products on this page are 100% real shoot by us.
Q13. Is there any discount for bulk order?
A: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Attention should be paid to welding high-power UV LED:
1) The welding time should not exceed 3S;
2) Welding temperature should be less than 260 degrees Celsius.
3) Reflow welding is allowed only once.
4) When welding, distinguish positive and negative polarity, and avoid lens to avoid damage to lens.
If you have other needs, please contact us to provide you with the best solution.
