Product Details
Place of Origin: CHINA
Brand Name: YM
Certification: High-tech Enterprise Certificate
Model Number: UV Light Module 9450
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 100000
Product Name: |
UV Light Module 9450 |
Power: |
300W |
Module Size: |
94.5mm*50mm*2.0mm |
Luminous Size: |
92.5mm*25mm |
Voltage: |
65-75V |
Current: |
3-4.5A |
LED Chips: |
Seoul, LG, Epileds |
Encapsulation Process: |
High Temperature Quartz Lens Package Lamp Beads |
View Angle Of The Lens: |
30, 60, 120, 180degree |
Warranty: |
2 Years |
Product Name: |
UV Light Module 9450 |
Power: |
300W |
Module Size: |
94.5mm*50mm*2.0mm |
Luminous Size: |
92.5mm*25mm |
Voltage: |
65-75V |
Current: |
3-4.5A |
LED Chips: |
Seoul, LG, Epileds |
Encapsulation Process: |
High Temperature Quartz Lens Package Lamp Beads |
View Angle Of The Lens: |
30, 60, 120, 180degree |
Warranty: |
2 Years |

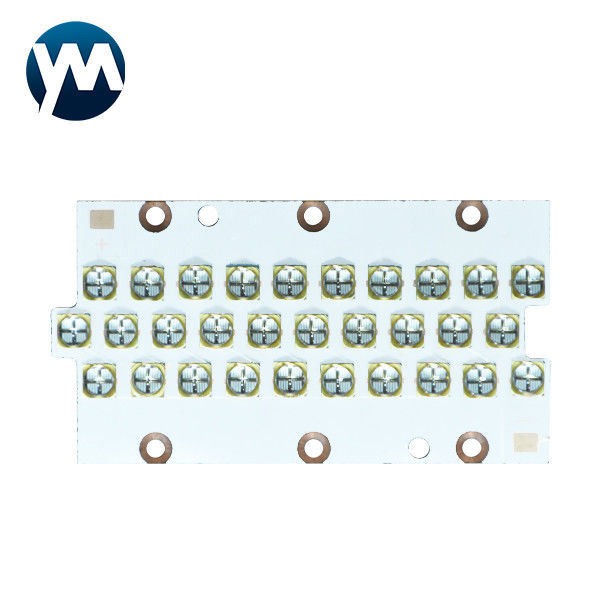

UV Light Module 300W Seamless splicing fast curing module 395nm lamp beads
| Product Name | UV Light Module 6188 |
| Power | 700W |
| Color | UV |
| Number of lamp beads | 30 pcs |
| Diode type | 6565-6868 smd |
| Lens Material of Diode | Silica gel or quartz |
| View Angle of the Lens | 30, 60, 120, 180degree |
| Module size | 94.5mm*50mm*2.0mm |
| Luminous Size | 92.5mm*25mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 65-75V |
| Current | 3-4.5A |
| Chip Material | Seoul,LG,Epileds |
| Encapsulation process | High temperature quartz lens package module |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 20000-30000 |
| Warranty | 2 years |
| Application | Apply in various UV printing industries, painting,UV inks, UV glues, and touch screens. |
| Place of Origin | Shenzhen, Guangdong, China |
Why Choose Us
1) Quality Control
Our manufacturing team is based of highly skilled professional which check quality of every product before shipping.
2) Customization options
We provide customized products according to your needs.
3) Post-sales customer support
We provide trainned customer service personal for our customers to solve all your problems.
FAQ
Q1. Are the pictures real?
A. All the pictures were taken by our company and all of the pictures are real.
Q2. What's the wavelength of the UV Curing LED Lamp?
A. The wavelength of UV LED Lamp usually are 365-405nm, the wavelength for inkjet printer is 395nm,
385/395nm for printing machine, 365nm for UV glue.
Q3. What's the brand of LED chip you use?
A. The LED chip brand we use are LG, Epileds, Seoul.
Q4. What's the materials of the lamp and lens ?
A. The materials of lamp is Aluminum, and the lens are quartz.
Attention should be paid to welding high-power UV LED:
1) The welding time should not exceed 3S;
2) Welding temperature should be less than 260 degrees Celsius.
3) Please make sure that the electricity parameters such as voltage and current does not exceed the rated clectricity parameters of the products.
4) Do a good job of heat dissipation measures, especially high-power UVLED as far as possible to ensure adequate radiator area.
5) In order to prolong the lifetime of ultraviolet light emitting diodes, it is recommended to use a stable constant current driving power supply or IC instead of a constant voltage driving power supply or IC.
If you have other needs, please contact us to provide you with the best solution.
