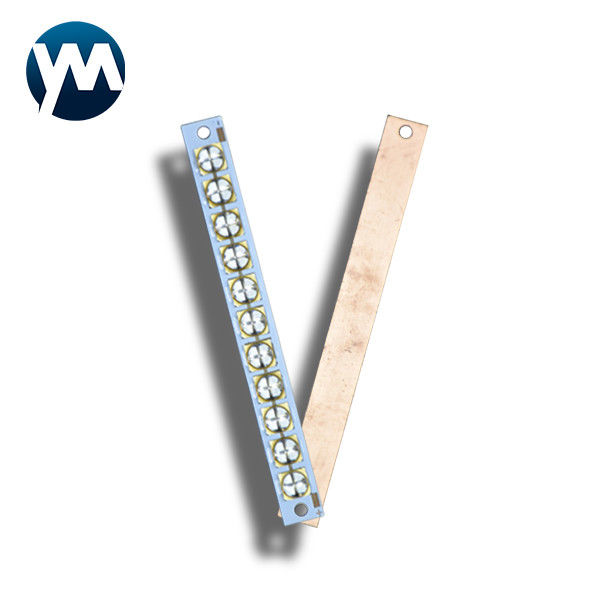

UV Light Module 110W High Power Lamp Beads Module UV LED Curing System

Product Details

Place of Origin: CHINA

Brand Name: YM

Certification: High-tech Enterprise Certificate

Model Number: UV Light Module 9510

Payment & Shipping Terms

Minimum Order Quantity: Negotiate

Price: Negotiate

Packaging Details: Carton

Delivery Time: 7-10 work days

Payment Terms: T/T

Supply Ability: 100000

Get Best Price
Highlight:

UV LED Module 110W

,

High Power Lamp Beads Module

,

110W UV Light Module

Product Name:
UV Light Module 9510
Power:
110W
Module Size:
95mm*10mm*2.0mm
Luminous Size:
83mm*6.5mm
Voltage:
71.5-82.5V
Current:
1-1.5A
LED Chips:
Seoul, Epileds, LG
Encapsulation Process:
High Temperature Quartz Lens Package Module
View Angle Of The Lens:
60, 120 Degree
Warranty:
2 Years
Product Name:
UV Light Module 9510
Power:
110W
Module Size:
95mm*10mm*2.0mm
Luminous Size:
83mm*6.5mm
Voltage:
71.5-82.5V
Current:
1-1.5A
LED Chips:
Seoul, Epileds, LG
Encapsulation Process:
High Temperature Quartz Lens Package Module
View Angle Of The Lens:
60, 120 Degree
Warranty:
2 Years
UV Light Module 110W High Power Lamp Beads Module UV LED Curing System

UV Light Module 110W high power lamp beads module uv led curing system



UV Light Module Product Description
The UV LED module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
We can provide you with customized products.
Product Name UV Light Module 9510
Power 110W
Color UV
Number of lamp beads 11 pcs
Diode type 6565/6868 smd
Lens Material of Diode Silica gel or quartz
View Angle of the Lens 60, 120 degree
Module size 95mm*10mm*2.0mm
Luminous Size 83mm*6.5mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 71.5-82.5V
Current 1-1.5A
Chip Material Seoul,Epileds,LG
Encapsulation process High temperature quartz lens package UV lamp
Module material 2.0mm Copper substrate
Lifespan (hours) 20000-30000
Warranty 2 years
Application Apply in various UV printing industries, painting,UV inks, UV glues, and touch screens.
Place of Origin Shenzhen, Guangdong, China

UV Light Module 110W High Power Lamp Beads Module UV LED Curing System 0UV Light Module 110W High Power Lamp Beads Module UV LED Curing System 1UV Light Module 110W High Power Lamp Beads Module UV LED Curing System 2

FAQ

Q1: What will be the delivery time and what will be the mode of payment?
A: Our delivery time will be 3-10days
The payment can be T/T transaction/ alibaba payment
Q2: About logistics?
A: Usually ,we ship the products by express , But we can arrange shipment according to your need.
Q3: Is there any discount for bulk order?
A: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q4: How to place an order?
A: If you want to place an order, Please feel free to send us an inquiry email or contact us by trademanager online,

we will reply you within 24hours(working day).

Q5: All the pictures are real photo?
A: Yes, the pictures of all products on this page are 100% real shoot by us.
Q6: How about the quality of the leds?
A: Please do not worry about the quality. Our company is the main manufacturer of LEDs in China.

Our products have exported worldwide since the year 2014
Q7: Do you supply OEM,ODM service?
A: YES,absolutely it can be realized.





Please pay special attention
Warm tips, in order to make our products play the best performance and reduce customer failure in the use of products, please note:
1) During the whole process of use, all people who are in direct contact with UVLED should take measures to prevent and eliminate static electricity, and do not touch the UV light emitting diode directly with their hands.
2) When welding, attention should be paid to the welding time and temperature, and the positive and negative polarities should be distinguished.
3) Electrical parameters such as current and voltage should not exceed the rated values.

For high power weliding using UV LED the following points should be followed
1) The operation of welding should not exceed the time limit;
2)Make sure that the welding temprature is below 260C degrees at all time.

3)Aviod lens damage during welding.
4) Make sure that the cooling system is working actively, efficeiently and is dissipating heat.



If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
