UV LED Module 300W LED Ultraviolet 3W LED Chip Quarz Offset Ink Module

Name: UV LED Module 300W LED Ultraviolet 3W LED Chip Quarz Offset Ink Module
Brand: shenzhen yuanming co., ltd
SKU: UV LED Module 8042
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: YM

Certification: High-tech Enterprise Certificate

Model Number: UV LED Module 8042

Payment & Shipping Terms

Minimum Order Quantity: 2 pcs

Price: Negotiate

Packaging Details: Carton

Delivery Time: 7-10 work days

Payment Terms: T/T

Supply Ability: 100000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                300W UV LED module, 3W UV LED chip, quartz offset ink UV module


Product Name:	UV LED Module 8042	Power:	300W
Module Size:	80mm42mm2.0mm	Luminous Size:	80mm*20mm
Voltage:	68-76V	Current:	2.5-3.5A
LED Chips:	Optional (LG/Epileds/ Seoul)	Encapsulation Process:	High Temperature Quartz Lens Package Lamp
View Angle Of The Lens:	60 Degree	Warranty:	1-Year

Product Name:	UV LED Module 8042
Power:	300W
Module Size:	80mm42mm2.0mm
Luminous Size:	80mm*20mm
Voltage:	68-76V
Current:	2.5-3.5A
LED Chips:	Optional (LG/Epileds/ Seoul)
Encapsulation Process:	High Temperature Quartz Lens Package Lamp
View Angle Of The Lens:	60 Degree
Warranty:	1-Year

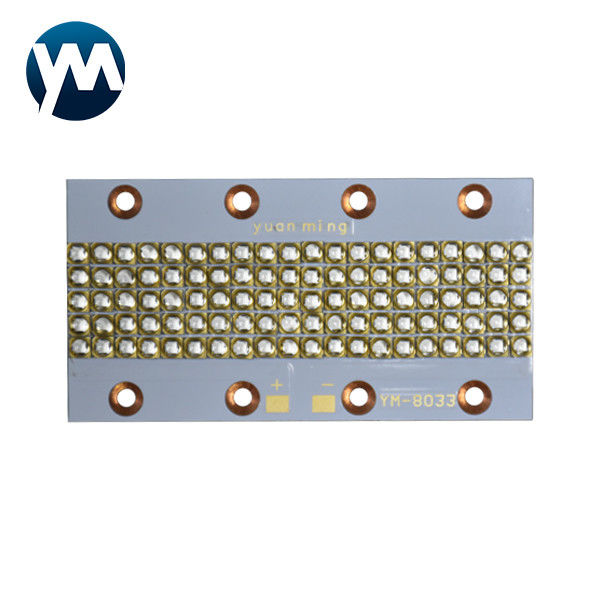

UV LED Module 300W LED Ultraviolet 3W LED Chip Quarz Offset Ink Module

UV LED Module 300W led ultraviolet 3W led chip quarz offset ink module

UV LED Module Product Description

The UV LED module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,

so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.


			Product Name
			UV LED Module 8042

			Power
			300W

			Color
			UV

			Number of lamp beads
			100 pcs

			Diode type
			3535 smd

			Lens Material of Diode
			Quartz

			View Angle of the Lens
			60 degree

			Module size
			80mm*42mm*2.0mm

			Luminous Size
			80mm*20mm

			Wavelength
			365nm,385nm,395nm,405nm

			Voltage
			68-76V

			Current
			2.5-3.5A

			Chip Material
			LG,Seoul,Epileds

			Encapsulation process
			High temperature quartz lens package lamp beads

			Module material
			2.0mm Copper substrate

			Lifespan (hours)
			20000

			Warranty
			1 year

			Application
			Apply in various UV printing industries, painting,

			Place of Origin
			Shenzhen, Guangdong, China

UV LED Module 300W LED Ultraviolet 3W LED Chip Quarz Offset Ink Module 0

FAQ

Q1 : Can your products’ label, packaging, design be customized?

A : Yes, we offer customization service on these.

Q2 : What is your monthly production capacity?

A : Our factory production capacity is 5,000 sets of uv curing systems per month.

Q3 : What is your minimum order quantity?

A : Normally MOQ 2unit, but we also accept one sample .

Q4 : Can I get a sample for quality check?

A : Yes, we offer sample.

Q5 : How soon is the lead time?

A : For sample order, 3-7 days. For bulk order, 8-16 days.

If you have other needs, please contact us to provide you with the best solution.

Umi@ymleduv.com , Thank you for your attention.
