Product Details
Place of Origin: CHINA
Brand Name: YM
Certification: High-tech Enterprise Certificate
Model Number: UV Light Module 6031
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 100000
Product Name: |
UV Light Module 6031 |
Power: |
135W |
Module Size: |
60mm*31mm*2.0mm |
Luminous Size: |
60mm*11.5mm |
Voltage: |
51-57V |
Current: |
1.5-2.1A |
LED Chips: |
Epileds/ Seoul/ LG |
Encapsulation Process: |
High Temperature Quartz Lens Package Uv Module |
View Angle Of The Lens: |
60, 120 Degree |
Warranty: |
1 Years |
Product Name: |
UV Light Module 6031 |
Power: |
135W |
Module Size: |
60mm*31mm*2.0mm |
Luminous Size: |
60mm*11.5mm |
Voltage: |
51-57V |
Current: |
1.5-2.1A |
LED Chips: |
Epileds/ Seoul/ LG |
Encapsulation Process: |
High Temperature Quartz Lens Package Uv Module |
View Angle Of The Lens: |
60, 120 Degree |
Warranty: |
1 Years |

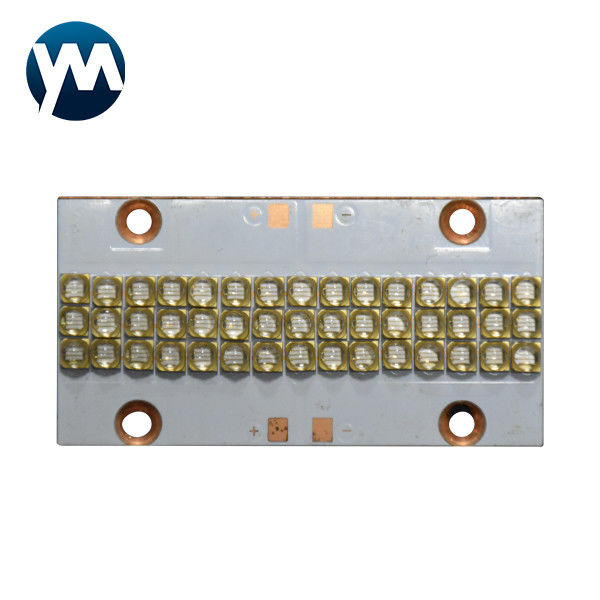

UV Light Module 135W led module light 3535 3W quartz lens lamp beads
| Product Name | UV Light Module 6031 |
| Power | 135W |
| Color | UV |
| Number of lamp beads | 45 pcs |
| Diode type | 3535 smd |
| Lens Material of Diode | Silica gel or quartz |
| View Angle of the Lens | 60, 120 degree |
| Module size | 60mm*31mm*2.0mm |
| Luminous Size | 60mm*11.5mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 51-57V |
| Current | 1.5-2.1A |
| Chip Material | Seoul,LG,Epileds |
| Encapsulation process | High temperature quartz lens package module lamp |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 20000-30000 |
| Warranty | 2 years |
| Application | Apply in various UV printing industries, painting,UV inks, UV glues, and touch screens. |
| Place of Origin | Shenzhen, Guangdong, China |
Why Choose Us
1) Fiar pricing
Our prices are wholesale factory prices.
2) Quality Control
Our manufacturing team is based of highly skilled professional which check quality of every product before shipping.
3) Customization options
We provide customized products according to your needs.
4) Post-sales customer support
We provide trainned customer service personal for our customers to solve all your problems.
FAQ
Q1. Is your company a manufacturer or a distributor?
A. We are a manufacturing company based in Shenzhen.For the past 7 years we havebeen producing and developing UV LED products.
Q2. Can we customize the product?
A. Yes! We can produce according to your requirements or technical drawings.
Q3. What is your main products?
A. UV LED Lamp Bead; UV LED Module; UV LED Single Light.
Q4. Do you have any MOQ limit for led light order?
No! One is also acceptable.
Q5. How much time is required for shipping?
A. Normally 3-7 days, depends upon the quantity.
Q6. How do i know what wavelength is suitable for me?
A. Normally Wavelength of UV LED lamps is between 365-405nm, inkjet printers use 395nm,
printing machine use 385/395nm , UV glue curing requires 365nm.
Q7. What kind of brands do you use to produce UV LEDs?
A. We use the following brands Epileds,LG,Seoul
Q8. What kind of materials do you use to make the lamps and lens ?
A. We use Aluminum for lamps and quartz for lens.
Q9. Is there any discount for bulk order?
A. Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q10. How to place an order?
A. Contact our sales representatives by email, skype or make a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose T/T,L/C to send us payment.
If you have other needs, please contact us to provide you with the best solution.
