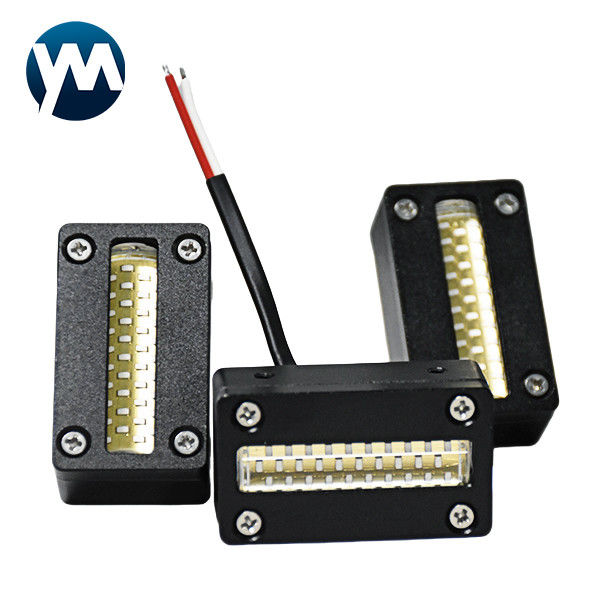

UV LED Curing Lamp COB 80W Chiller UV Lamp LED UV Curing Machine UV LED Lamp

Name: UV LED Curing Lamp COB 80W Chiller UV Lamp LED UV Curing Machine UV LED Lamp
Brand: shenzhen yuanming co., ltd
SKU: UV LED Curing lamp COB 80W
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: YM

Certification: High-tech Enterprise Certificate

Model Number: UV LED Curing lamp COB 80W

Payment & Shipping Terms

Minimum Order Quantity: Negotiate

Price: Negotiate

Packaging Details: Carton

Delivery Time: 10-15 Work days

Payment Terms: T/T

Supply Ability: 10000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                UV Curing Lamp Chiller, 80W UV LED Lamp, UV LED COB Curing lamp


Name:	UV LED Curing Lamp COB 80W	Power:	80W
Size:	44mm*27mm	Luminous Size:	37mm*8mm
Cooling Scheme:	Water Cooling	Wavelength:	365nm,395nm

Name:	UV LED Curing Lamp COB 80W
Power:	80W
Size:	44mm*27mm
Luminous Size:	37mm*8mm
Cooling Scheme:	Water Cooling
Wavelength:	365nm,395nm

UV LED Curing Lamp COB 80W Chiller UV Lamp LED UV Curing Machine UV LED Lamp

UV LED Curing Lamp COB 80W Chiller UV Lamp LED UV Curing Machine uv led lamp

UV LED Curing Lamp Product Description

The item may be administered along with either Water-cooling or even wind-cooling strategy.
Various other treating dimension and also current may be created according your requirment, inluding mix
wavelenth unique wavelenth as well as treating dimension.

Greater functionality and also lowered consumption.
Apply in a number of printing industries, coating, in addition to sticky.

Item	UV LED Curing lamp COB 80W
Power	80w
Color	UV
Diode Brand	DC, LG
Diode type	COB smd type
Size	44mm*27mm
Luminous Size	37mm*8mm
Chip Material	Epileds
Wavelength	365nm,385nm,395nm,405nm
Cooling scheme	Water cooling
Application	Apply in various printing industries, painting, and glue.
Lifespan (hours)	20000-30000
Warranty	1 years
Place of Origin	Guangdong, China

Attention should be paid to welding high-power UV LED:

1) The welding time should not exceed 3S;

2) Welding temperature should be less than 260 degrees Celsius.

3) Reflow welding is allowed only once.

4) When welding, distinguish positive and negative polarity, and avoid lens to avoid damage to lens..

5) Do a good job of heat dissipation measures, especially high-power UVLED as far as possible to ensure

adequate radiator area

6) In order to prolong the lifetime of ultraviolet light emitting diodes, it is recommended to use a stable

constant current driving power supply or IC instead of a constant voltage driving power supply or IC.

Thank you for your attention
