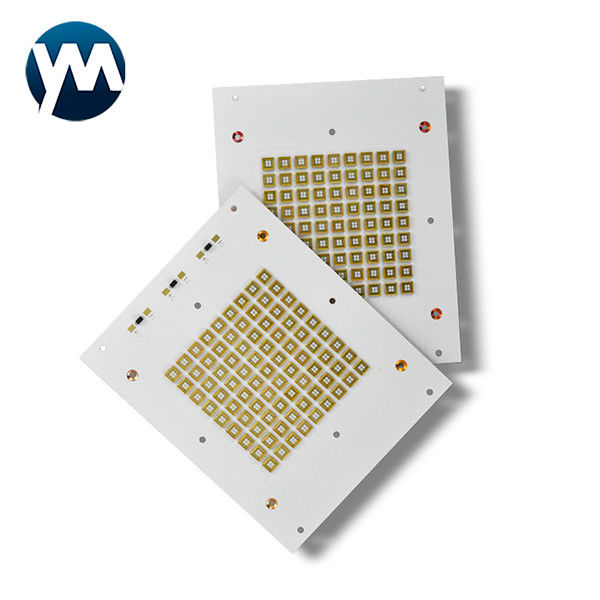

800W High Power UV LED Module 7070 SMD For Printing Industries

Name: 800W High Power UV LED Module 7070 SMD For Printing Industries
Brand: shenzhen yuanming co., ltd
SKU: UV LED Module 158128
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: YM

Certification: High-tech Enterprise Certificate

Model Number: UV LED Module 158128

Payment & Shipping Terms

Minimum Order Quantity: Negotiate

Price: Negotiate

Packaging Details: Carton

Delivery Time: 7-10 work days

Payment Terms: T/T

Supply Ability: 100000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                800W UV LED module for printing, High power UV LED module 7070, SMD UV LED module industrial


Product Name:	UV LED Module 158128	Power:	800W
Module Size:	158mm128mm2.0mm	Luminous Size:	80mm*80mm
Voltage:	97-103V	Current:	15-18A
View Angle Of The Lens:	60 Degree	Warranty:	1-Year

Product Name:	UV LED Module 158128
Power:	800W
Module Size:	158mm128mm2.0mm
Luminous Size:	80mm*80mm
Voltage:	97-103V
Current:	15-18A
View Angle Of The Lens:	60 Degree
Warranty:	1-Year

800W High Power UV LED Module 7070 SMD For Printing Industries

UV LED Module 800W High power UV module Apply to printing industries

UV LED Module Product Description

The UV LED module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,

so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.

We can provide you with customized products.


			Product Name
			UV LED Module 158128

			Power
			800W

			Color
			UV

			Number of lamp beads
			156 pcs

			Diode type
			7070 smd

			Lens Material of Diode
			quartz

			View Angle of the Lens
			180 degree

			Module size
			158mm*128mm*2.0mm

			Luminous Size
			80mm*80mm

			Wavelength
			365nm,385nm,395nm,405nm

			Voltage
			97-103V

			Current
			15-18A

			Chip Material
			Seoul,LG,Epileds

			Encapsulation process
			High temperature quartz lens package module

			Module material
			2.0mm Copper substrate

			Lifespan (hours)
			20000

			Warranty
			1-year

			Application
			Apply in various UV printing industries, painting,UV inks, UV glues

			Place of Origin
			Shenzhen, Guangdong, China

Why Choose Us
1) Good price
We provide manufacturers' direct selling prices.
2) Quality assurance
We have our own R&D team, and each product is professionally tested before shipment.
3) Customized service
We can customize products according to your needs.
4) After-sales service
We provide high-quality and timely pre-sales consultation and after-sales service.

Any questions about UV LED will be answered by professional engineers within 12 hours.

Frequently asked questions

Q1:Do you have your own factory?

A1:Yes! We have our own factory in Shenzhen. We have been producing UV LED product since 2015.

Q2:Do you support OEM,ODM service?

A2: Yes! We support OEM / ODM service to customized.

Q3 : What is your minimum order quantity?

A3 : MOQ 2 set, but we also accept sample order for quality clients.

Q4 : Can I get a sample for quality check?

A4: Yes, we offer sample.

Q5:What is your usual payment terms for orders?

A5:T/T,D/P D/A,Credit card,PayPal.We accept multiple payment methods.

If you have other needs, please contact us to provide you with the best solution.

Umi@ymleduv.com , Thank you for your attention.
