Product Details
Place of Origin: CHINA
Brand Name: YM
Certification: High-tech Enterprise Certificate
Model Number: UV LED Module 8759
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 100000
Product Name: |
Water Cooling UV LED Module 8759 |
Power: |
210W |
Module Size: |
87.5mm*59mm*2mm |
Luminous Size: |
84mm*39mm |
Voltage: |
41-46V |
LED Chips: |
Optional(LG/Epileds/ Seoul) |
Encapsulation Process: |
2.0mm High Temperature Quartz Lens Package |
View Angle Of The Lens: |
60,120 Degree |
Product Name: |
Water Cooling UV LED Module 8759 |
Power: |
210W |
Module Size: |
87.5mm*59mm*2mm |
Luminous Size: |
84mm*39mm |
Voltage: |
41-46V |
LED Chips: |
Optional(LG/Epileds/ Seoul) |
Encapsulation Process: |
2.0mm High Temperature Quartz Lens Package |
View Angle Of The Lens: |
60,120 Degree |

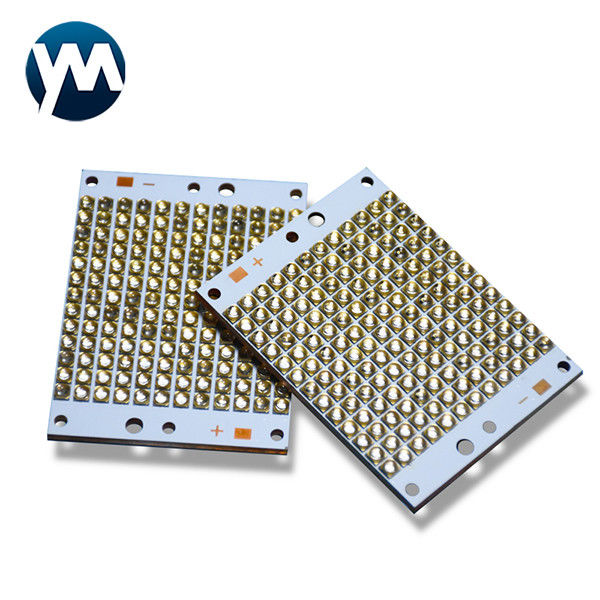

Water Cooling UV LED Module 210W Ultraviolet Lamps Uv Curing System
UV LED Module the Ceramics package, it has a high reliability, good heat dissipation, are widely used in the curing, printing and other fields, for example, uv curing, uv ink curing, printing.
UV LED Module can be applied with either Water-cooling or wind-cooling method.
Other curing size and voltage can be designed according your requirement, including mix
wavelength special wavelength and curing size.
|
Product Name |
UV LED Module 8759 |
|
Power |
210W |
|
Color |
UV |
|
Number of lamp beads |
72 pcs |
|
Diode type |
3535 smd |
|
Lens Material of Diode |
Silica gel or quartz |
|
View Angle of the Lens |
60, 120 degree |
|
Module size |
87.5mm*59mm*2mm |
|
Luminous Size |
84mm*39mm |
|
Wavelength |
365nm,385nm,395nm,405nm |
|
Voltage |
41-46V |
|
Current |
3-4.2A |
|
Chip Material |
LG,Seoul,Epileds |
|
Encapsulation process |
2.0mm High temperature quartz lens package |
|
Lifespan (hours) |
20000-30000 |
|
Application |
Apply in various UV printing industries, painting, |
why choose us
1. Well-known chip material
2. 99.99% gold wire bonding
3. 2 years warranty
4. Over 10 years work experience technical service team
5. 24 hours service Professional sales team
6. Free Sample is available
7. Fast delivery
8.100% QC inspection Before Shippment
9. Aiming at the consult of "high quality, zero defect”, give you the best quality, best service.
FAQ
Q1. Are you a factory?
A: Yes! We are a factory in Shenzhen. We have been producing UV LED products for seven years.
Q2. What are your main products?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV equipment.
Q3. Do you have any MOQ restrictions on LED light orders?
Do not! One is also acceptable.
Q4. Can we customize products?
A: Yes! We can produce according to your requirements or technical drawings.
Q5. How long is your product warranty for?
A: We provide 1 year warranty. If there are any problems during the warranty period, please
Contact us and we will replace or repair them for you.
Q6. How to process the order?
A: 1. Let us know your requirements.
2. We quote and provide our suggestions.
3. We will make PI after you confirm the quotation.
4. You pay after checking the details.
5. We will arrange delivery as soon as possible.
Matters needing attention
Warm reminder, in order to make our products play the best performance, and to reduce
the failure of customers when using the product, please pay attention to:
1) During the entire use process, all people who are in direct contact with UVLEDs should
take measures to prevent and eliminate static electricity, and do not directly touch UV LEDs with their hands.
2) Pay attention to the welding time and temperature when welding, and distinguish between positive and negative polarity.
3) Electrical parameters such as current and voltage must not exceed the rated value.
Attention should be paid to welding high-power UV LED:
1) The welding time should not exceed 3S;
2) The welding temperature should be lower than 260 degrees Celsius.
3) Reflow soldering is only allowed once.
4) Distinguish the positive and negative polarity when welding, avoid the lens, so as not to damage the lens.
If you have other needs, please contact us to provide you with the best solution.
