Product Details
Place of Origin: CHINA
Brand Name: YM
Certification: High-tech Enterprise Certificate
Model Number: UV LED Module 4024
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 100000
Product Name: |
UV LED Module 4024 |
Power: |
30W |
Module Size: |
40mm*24mm*2.0mm |
Luminous Size: |
22mm*6.5mm |
Voltage: |
19-23V |
Current: |
1-1.5A |
Product Name: |
UV LED Module 4024 |
Power: |
30W |
Module Size: |
40mm*24mm*2.0mm |
Luminous Size: |
22mm*6.5mm |
Voltage: |
19-23V |
Current: |
1-1.5A |

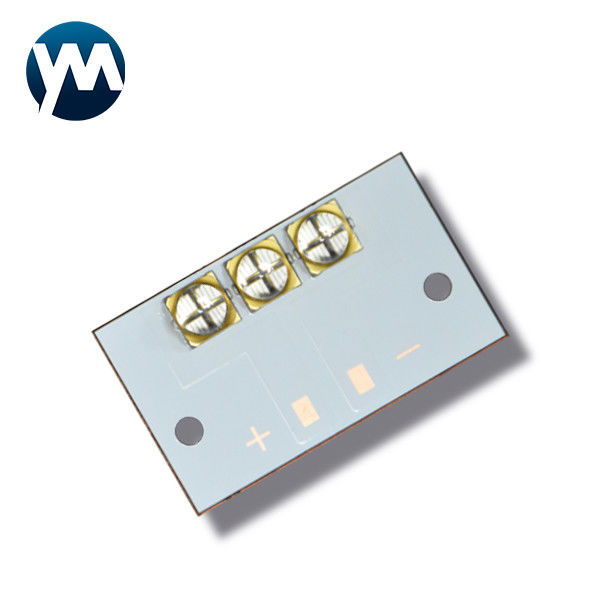

30W UV LED Module Quartz Lens Lamp Beads 365nm 385nm 395nm 405nm
Description of UV LED Module:
Specification of SMD LED Chips:
| Product Name | UV LED Module 4024 |
| Power | 30W |
| Color | UV |
| Number of lamp beads | 3 pcs |
| Diode type | 6565/6868 smd |
| Lens Material of Diode | Silica gel or quartz |
| View Angle of the Lens | 30, 60, 120 degree |
| Module size | 40mm*24mm*2.0mm |
| Luminous Size | 22mm*6.5mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 19-23V |
| Current | 1-1.5A |
| Chip Material | LG,Seoul,Epileds |
| Encapsulation process | High temperature quartz lens package |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 20000-30000 |
| Warranty | 2 years |
| Application | Apply in various UV printing industries, painting, |
| Place of Origin | Shenzhen, Guangdong, China |
Feature of UV LED Module
• High power and efficiency, high reliability
• Long operation lifetime, low light failure
• Environmental protection, energy saving
• Zener diode protection device
