Product Details
Place of Origin: CHINA
Brand Name: YM
Certification: High-tech Enterprise Certificate
Model Number: UV LED Module 2222
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 100000
Product Name: |
UV LED Module 2222 |
Power: |
20W |
Module Size: |
22mm*22mm*2.0mm |
Luminous Size: |
14mm*6.5mm |
Voltage: |
13-15V |
Current: |
1-1.5A |
LED Chips: |
Optional(LG/Epileds/ Seoul) |
Encapsulation Process: |
High Temperature Quartz Lens Package Module |
View Angle Of The Lens: |
30,60,90, 120 Degree |
Warranty: |
1-2 Years |
Product Name: |
UV LED Module 2222 |
Power: |
20W |
Module Size: |
22mm*22mm*2.0mm |
Luminous Size: |
14mm*6.5mm |
Voltage: |
13-15V |
Current: |
1-1.5A |
LED Chips: |
Optional(LG/Epileds/ Seoul) |
Encapsulation Process: |
High Temperature Quartz Lens Package Module |
View Angle Of The Lens: |
30,60,90, 120 Degree |
Warranty: |
1-2 Years |

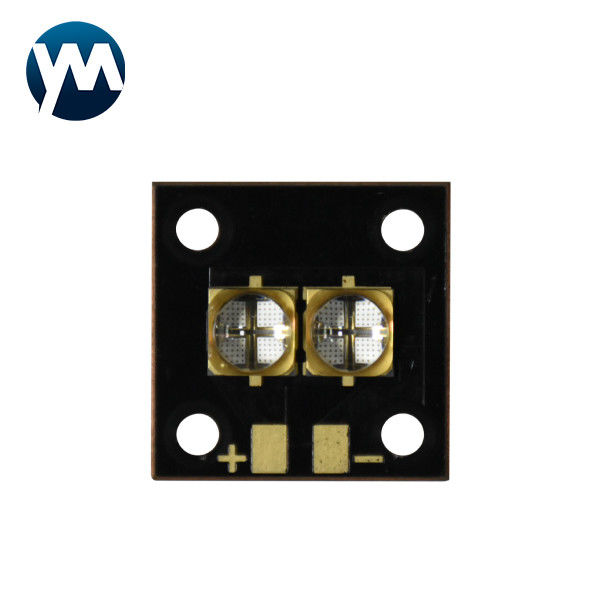

UV LED Module 20W High Power UV Led Curing Lamp 365nm 385nm 395nm 405nm
| Product Name | UV LED Module 2222 |
| Power | 20W |
| Color | UV |
| Number of lamp beads | 2 pcs |
| Diode type | 6565 smd |
| Lens Material of Diode | Silica gel or quartz |
| View Angle of the Lens | 30, 60, 90, 120 degree |
| Module size | 22mm*22mm*2.0mm |
| Luminous Size | 14mm*6.5mm |
| Wavelength | 365nm, 385nm, 395nm, 405nm |
| Voltage | 13-15V |
| Current | 1-1.5A |
| Chip Material | LG,Seoul,Epileds |
| Encapsulation process | High temperature quartz lens package module |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 20000-30000 |
| Warranty | 2 years |
| Application | Apply in various UV printing industries, painting, |
| Place of Origin | Shenzhen, Guangdong, China |
FAQ
Q1. Are you a factory?
A: Yes! We are a factory in Shenzhen. We have been producing UV LED products for seven years.
Q2. What is your main product?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV equipment.
2. What is the delivery time and payment method?
It takes 3-7 days for regular products, 15-20 days for customized products
The payment method can be T/T transaction/Alibaba payment
Q3. About logistics?
A: Usually, we ship the products by express, but we can arrange the delivery according to your needs.
Application of UV LED Module
UV LED Module are mainly used in printing curing, anti-counterfeiting identification, purification (water, air, etc.) fields, computer data storage and military. Moreover, with the development of technology, new applications will continue to appear to replace the original technology and products. Ultraviolet LEDs have broad market application prospects.
If you have other needs, please contact us to provide you with the best solution.
