Product Details
Place of Origin: CHINA
Brand Name: YM
Certification: High-tech Enterprise Certificate
Model Number: UV Light Module 5335
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 100000
Product Name: |
UV Light Module 5335 |
Power: |
140W |
Module Size: |
53mm*35mm*2.0mm |
Luminous Size: |
53mm*15mm |
Voltage: |
45-52V |
Current: |
2-3A |
Product Name: |
UV Light Module 5335 |
Power: |
140W |
Module Size: |
53mm*35mm*2.0mm |
Luminous Size: |
53mm*15mm |
Voltage: |
45-52V |
Current: |
2-3A |

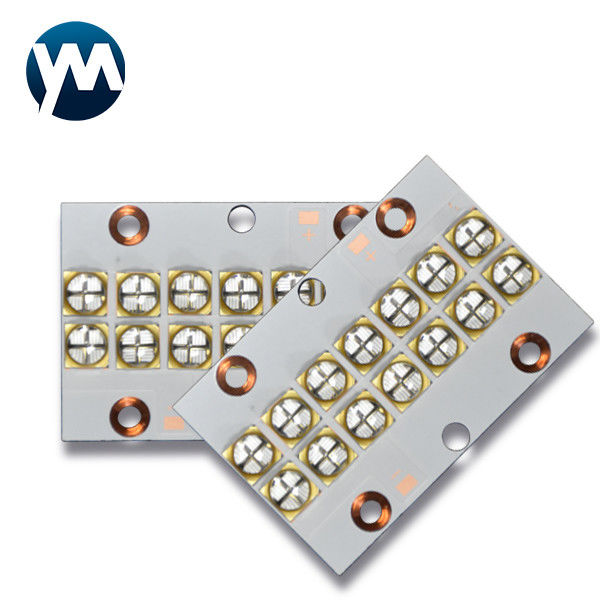

140W UV LED Module UV Curing High Power Module Quartz Lens 365nm 385nm 395nm 405nm
| Product Name | UV LED Module 5335 |
| Power | 140W |
| Color | UV |
| Number of lamp beads | 14 pcs |
| Diode type | 6868 smd |
| Lens Material of Diode | Silica gel or quartz |
| View Angle of the Lens | 30, 60, 120 degree |
| Module size | 53mm*35mm*2.0mm |
| Luminous Size | 53mm*15mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 45-52V |
| Current | 2-3A |
| Chip Material | LG,Seoul,Epileds |
| Encapsulation process | High temperature quartz lens package lamp |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 20000-30000 |
| Warranty | 2 years |
| Application | Apply in various UV printing industries, painting, |
| Place of Origin | Shenzhen, Guangdong, China |
FAQ
Q1. Are you a factory?
A: Yes! We are a factory in Shenzhen. We have been producing UV LED products for seven years.
Q2. What are your main products?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV equipment.
Q3. How about the quality of the leds?
A: Please do not worry about the quality. Our company is the main manufacturer of LEDs in China.
The payment can be T/T transaction/ alibaba payment.
Attention should be paid to welding high-power UV LED:
1) The welding time should not exceed 3S;
2) Welding temperature should be less than 260 degrees Celsius.
3) Reflow welding is allowed only once.
If you have other needs, please contact us to provide you with the best solution.
