Product Details
Place of Origin: CHINA
Brand Name: YM
Certification: High-tech Enterprise Certificate
Model Number: UV LED Module 5664
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 100000
Product Name: |
UV LED Module 5664 |
Power: |
560W |
Module Size: |
56mm*64mm*2.0mm |
Luminous Size: |
56mm*50mm |
Voltage: |
45.5-52.5V |
Current: |
8-12A |
Product Name: |
UV LED Module 5664 |
Power: |
560W |
Module Size: |
56mm*64mm*2.0mm |
Luminous Size: |
56mm*50mm |
Voltage: |
45.5-52.5V |
Current: |
8-12A |

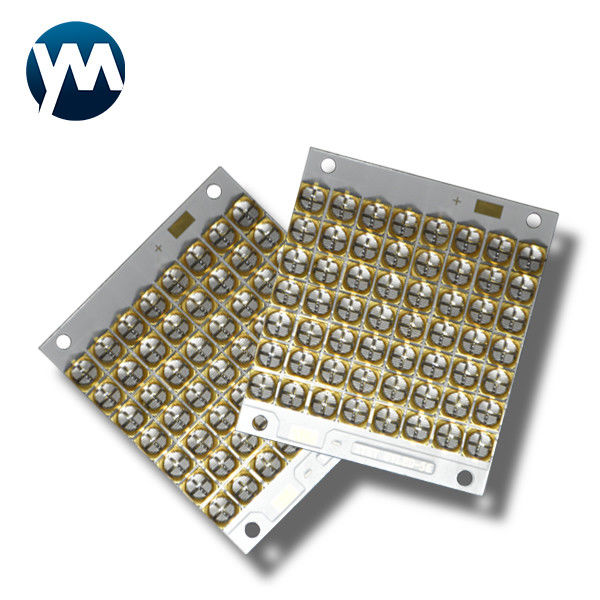

UV LED Module 560W 365nm 395nm 385nm 405nm uv led lamp beads uv ink curing lamp
| Product Name | UV LED Module 5664 |
| Power | 560W |
| Color | UV |
| Number of lamp beads | 56 pcs |
| Diode type | 6565 smd |
| Lens Material of Diode | Silica gel or quartz |
| View Angle of the Lens | 30, 60, 120 degree |
| Module size | 56mm*64mm*2.0mm |
| Luminous Size | 56mm*50mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 45.5-52.5V |
| Current | 8-12A |
| Chip Material | Seoul,LG,Epileds |
| Encapsulation process | High temperature quartz lens package module |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 20000-30000 |
| Warranty | 1 years |
| Application | Apply in various UV printing industries, painting,UV inks, UV glues, and touch screens. |
| Place of Origin | Shenzhen, Guangdong, China |
Feature of UV LED Module
• High power and efficiency, high reliability
• Long operation lifetime, low light failure
• Environmental protection, energy saving
• Zener diode protection device
Please pay special attention
1) The operation of welding should not exceed the time limit;
2)Make sure that the welding temprature is below 260C degrees at all time.
3) Do a good job of heat dissipation measures, especially high-power UVLED as far as possible to ensure adequate radiator area.
4) In order to prolong the lifetime of ultraviolet light emitting diodes, it is recommended to use a stable constant current driving power supply or IC instead of a constant voltage driving power supply or IC.
If you have other needs, please contact us to provide you with the best solution.
