Product Details
Place of Origin: CHINA
Brand Name: YM
Certification: High-tech Enterprise Certificate
Model Number: UV LED Module 11856
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 100000
Product Name: |
UV LED Module11856 |
Power: |
320W Hight Power |
Module Size: |
118*56*2.0mm |
Luminous Size: |
118*15mm |
Voltage: |
52V-60V |
Current: |
4A-6A |
Product Name: |
UV LED Module11856 |
Power: |
320W Hight Power |
Module Size: |
118*56*2.0mm |
Luminous Size: |
118*15mm |
Voltage: |
52V-60V |
Current: |
4A-6A |

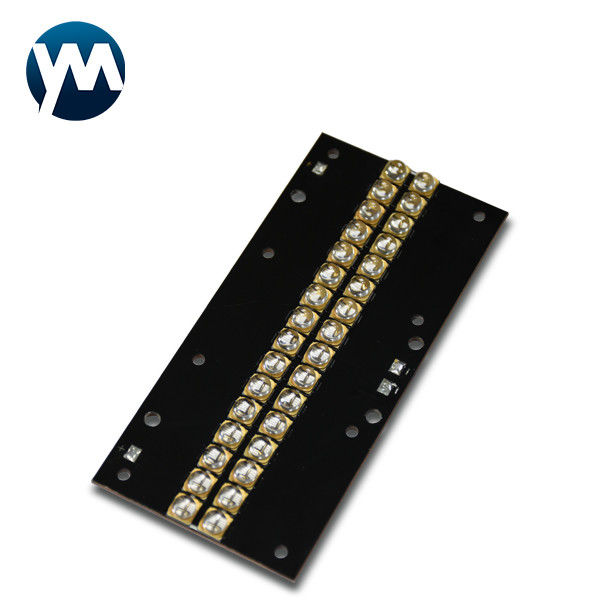

320W UV LED Module High Power UV LED Module Line Light Source 365nm 395nm
| Product Name | UV LED Module 11856 |
| Power | 320W |
| Color | UV |
| Number of lamp beads | 32 pcs |
| Diode type | 6565/6868 smd |
| Lens Material of Diode | Silica gel or quartz |
| View Angle of the Lens | 30, 60, 120 degree |
| Module size | 118mm*56mm*2.0mm |
| Luminous Size | 118mm*15mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 52-60V |
| Current | 4-6A |
| Chip Material | LG,Seoul,Epileds |
| Encapsulation process | High temperature quartz lens package |
| Module material | Copper substrate |
| Lifespan (hours) | 20000-30000 |
| Warranty | 2 years |
| Application | Apply in various UV printing industries, painting, |
| Place of Origin | Shenzhen, Guangdong, China |
FAQ
Q1. Are you a factory?
A: Yes! We are a factory in Shenzhen. We have been producing UV LED products for seven years.
Q2. What are your main products?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV equipment.
Q3. Do you have any MOQ restrictions on LED light orders?
Do not! One is also acceptable.
Q4. Can we customize products?
A: Yes! We can produce according to your requirements or technical drawings.
Q5. How long will it take for my order to be shipped?
A: It usually takes 3-7 days, depending on the quantity.
Matters needing attention
Warm reminder, in order to make our products play the best performance, and to reduce
the failure of customers when using the product, please pay attention to:
1) During the entire use process, all people who are in direct contact with UVLEDs should
take measures to prevent and eliminate static electricity, and do not directly touch UV LEDs with their hands.
2) Electrical parameters such as current and voltage must not exceed the rated value.
Attention should be paid to welding high-power UV LED:
1) The welding time should not exceed 3S;
2) The welding temperature should be lower than 260 degrees Celsius.
3) Reflow soldering is only allowed once.
4) When welding, distinguish positive and negative polarity, and avoid lens to avoid damage to lens.
If you have other needs, please contact us to provide you with the best solution.
