Home > products > UV Light Module > High Power 120W UV Light Module 6565 / 6868 Smd Diode Type 365nm 395nm

High Power 120W UV Light Module 6565 / 6868 Smd Diode Type 365nm 395nm

Product Details

Place of Origin: CHINA

Brand Name: YM

Certification: High-tech Enterprise Certificate

Model Number: UV Light Module 8422

Payment & Shipping Terms

Minimum Order Quantity: Negotiate

Price: Negotiate

Packaging Details: Carton

Delivery Time: 7-10 work days

Payment Terms: T/T

Supply Ability: 100000

Get Best Price
Highlight:

High Power Diode UV Light Module

,

82.5V UV Light Module

,

UV Light Module 1.5A

Product Name:
UV Light Module 8422
Power:
100W
Voltage:
71.5-82.5V
Current:
1-1.5A
Number Of Lamp Beads:
11 Pcs
Diode Type:
6565/6868 Smd
Product Name:
UV Light Module 8422
Power:
100W
Voltage:
71.5-82.5V
Current:
1-1.5A
Number Of Lamp Beads:
11 Pcs
Diode Type:
6565/6868 Smd
High Power 120W UV Light Module 6565 / 6868 Smd Diode Type 365nm 395nm

High Power 120W UV Light Module 6565 / 6868 Smd Diode Type 365nm 395nm​



Description of UV Light Module
The UV Light module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
We can provide you with customized products.


Specification of UV Light Module

Product Name UV Light Module 8422
Power 120W
Color UV
Number of lamp beads 11 pcs
Diode type 6565/6868 smd
Lens Material of Diode Silica gel or quartz
View Angle of the Lens 60, 90, 120 degree

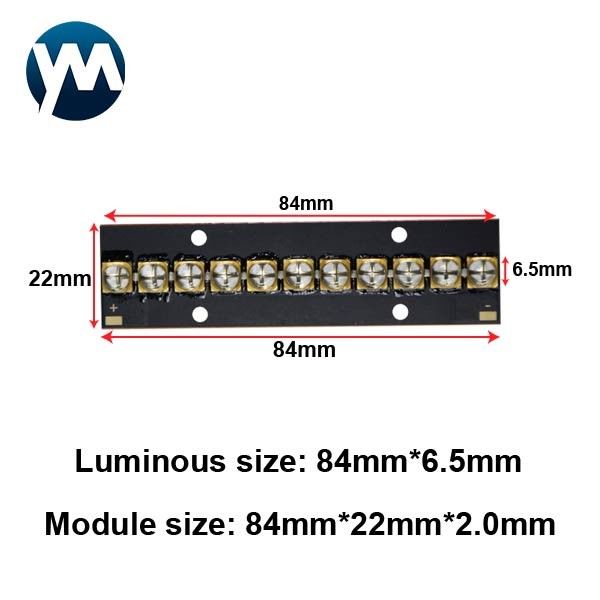

Module size 84mm*22mm*2.0mm
Luminous Size 84mm*6.5mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 71.5-82.5V
Current 1-1.5A
Chip Material Seoul,LG,Epileds
Encapsulation process High temperature quartz lens package module
Module material 2.0mm Copper substrate
Lifespan (hours) 20000-30000
Warranty 1 years
Application Apply in various UV printing industries, painting,UV inks, UV glues, and touch screens.
Place of Origin Shenzhen, Guangdong, China

Application of UV LED Module

UV LED module is mainly used in biomedical, anti-counterfeiting identification, purification (water, air, etc.) fields, computer data storage and military. Moreover, with the development of technology, new applications will continue to appear to replace the original technology and products. Ultraviolet LED has broad market application prospects. For example, ultraviolet LED phototherapy instrument is a very popular medical device in the future, but the technology is still in its infancy. long.



1. advertising Printing

2. 3D printing

3. Bar code printing

4. PCB board protection

5. Lens UV glue bonding

6. touch screen protection

7. furniture Varnish Drying

8. Medical instrument

9. Precision optics

High Power 120W UV Light Module 6565 / 6868 Smd Diode Type 365nm 395nm 0High Power 120W UV Light Module 6565 / 6868 Smd Diode Type 365nm 395nm 1

If you have other needs, please contact us to provide you with the best solution.
