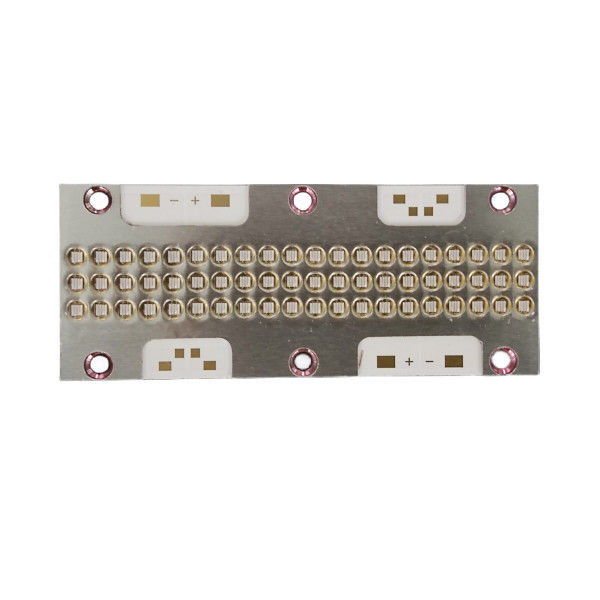

180W uv led curing lamp 365nm COB wholesale led seamless splicing module

Product Details

Place of Origin: CHINA

Brand Name: YM

Certification: High-tech Enterprise Certificate

Model Number: YM-180W-7631

Payment & Shipping Terms

Minimum Order Quantity: Negotiate

Price: Negotiate

Packaging Details: Carton

Delivery Time: 7-10 work days

Payment Terms: T/T

Supply Ability: 100000

Get Best Price
Highlight:
Product Name:
UV Light Module
Power:
180W
Module Size:
76mm*31mm*2.0mm
Luminous Size:
76mm*12mm
Diode Type:
60 Pcs Cob
Product Type:
6 Series 10 Parallel
Voltage:
20-22V
Current:
5-7A
Lifespan:
10000h
Material:
Aluminum Alloy
Hs Code:
8543909000
LED Angle:
30°/45°/60°/90° /120°/180°
Encapsulation Process:
High Temperature Quartz Lens Package
Color Temperature:
UV
Led Chips:
3535 COB
Application:
UV PRINTER,UV INK,UV CURING
Product Name:
UV Light Module
Power:
180W
Module Size:
76mm*31mm*2.0mm
Luminous Size:
76mm*12mm
Diode Type:
60 Pcs Cob
Product Type:
6 Series 10 Parallel
Voltage:
20-22V
Current:
5-7A
Lifespan:
10000h
Material:
Aluminum Alloy
Hs Code:
8543909000
LED Angle:
30°/45°/60°/90° /120°/180°
Encapsulation Process:
High Temperature Quartz Lens Package
Color Temperature:
UV
Led Chips:
3535 COB
Application:
UV PRINTER,UV INK,UV CURING
180W uv led curing lamp 365nm COB wholesale led seamless splicing module

Applications:

Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry,

furniture industry, etc.

It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers

includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.

"UV LED" curing lamp is a new technology and new way of drying UV series material resin/ink/varnish/adhesive/coating

etc. by ultraviolet irradiation, with fast speed and good performance.

Cool Printing Environment: Enables to print on heat sensitive substrates, viz. thin slides, self-adhesive sheet, stretch

PVC materials, and more. Minimum heat resistance allows effective bi-directional calibration.

Product Name YM-180W-7631 UV LED MODULE
Power 180W
Color UV
Number of lamp beads 60 pcs
Diode type 3535 cob
Lens Material of Diode Silica gel or quartz
View Angle of the Lens 30°/45°/60°/90° /120°/180°
Module size 76mm*31mm*2.0mm
Luminous Size 76mm*12mm
Series-parallel 6 series 10 parallel
Wavelength 365nm, 385nm, 395nm, 405nm
Voltage 20-22V
Current 5-7A
Chip Material LG,Seoul,Epileds
Encapsulation process High temperature quartz lens package module
Module material 2.0mm Copper substrate
Lifespan (hours) 10000
Warranty 1year
Application Apply in various UV printing industries, painting,
Place of Origin Shenzhen, Guangdong, China

Features and Benefits:

· User-friendly and intuitive to use

· Level Entry alternative to traditional curing procedures

· Outstanding Eco-Friendly LED Technology replaces Mercury and provides safer and more efficient results

        ··UV uses less energy, therefore significantly cutting operating costs

· Available wavelengths ensure you get the right System for the work needed

· Adjustable Light Intensity

· Features:Fast, flexible curing and drying

· Versatile application for precision projects
