Product Details
Place of Origin: CHINA
Brand Name: YM
Certification: High-tech Enterprise Certificate

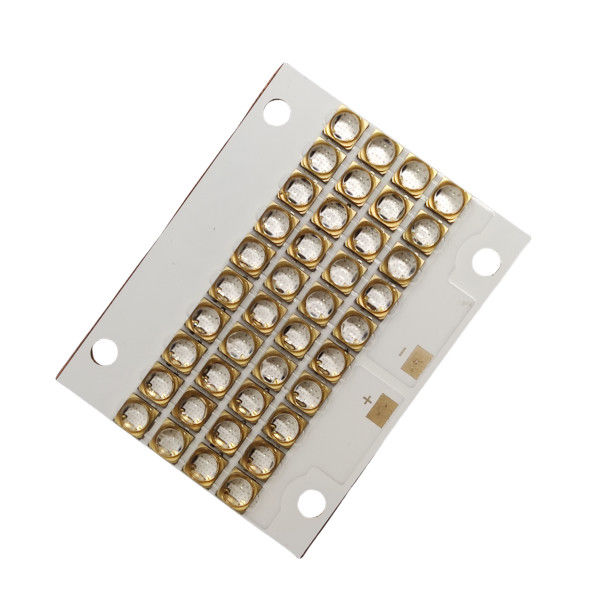

Model Number: 120W-4031 UV LED Module
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 100000
Product Name:: |
120W-4031 UV LED Module |
Power: |
120W |
Module Size: |
41mm*31mm*2.0mm |
Luminous Size: |
41mm*16mm |
Voltage: |
34-38V |
Current: |
2-2.8A |
LED Chips: |
Optional(LG/Epileds/ Seoul) |
Encapsulation Process: |
High Temperature Quartz Lens Package |
View Angle Of The Lens: |
30,60,90,120 Degree |
Warranty: |
1 Year |
Product Name:: |
120W-4031 UV LED Module |
Power: |
120W |
Module Size: |
41mm*31mm*2.0mm |
Luminous Size: |
41mm*16mm |
Voltage: |
34-38V |
Current: |
2-2.8A |
LED Chips: |
Optional(LG/Epileds/ Seoul) |
Encapsulation Process: |
High Temperature Quartz Lens Package |
View Angle Of The Lens: |
30,60,90,120 Degree |
Warranty: |
1 Year |
Advantages
|
Item |
UV LED Module |
|
Power |
120W |
|
Color |
UV |
| Number of lamp beads | 40 pcs |
|
Diode type |
3535 smd |
|
Lens Material of Diode |
Silica gel or quartz |
|
View Angle of the Lens |
30, 60, 120 degree |
|
Module size |
41mm*48mm*2.0mm |
| Luminous Size | 41mm*28mm |
|
Wavelength |
365nm,385nm,395nm,405nm |
|
Voltage |
34-38V |
|
Current |
2.5-3.5A |
|
Chip Material |
LG,Seoul,Epileds |
|
Encapsulation process |
High temperature quartz lens package |
|
Lifespan (hours) |
10000 |
|
Warranty |
1 year |
| Application | Apply in various UV glue, ink, paint, silk screen, inkjet, offset printing. |
|
Place of Origin |
Shenzhen, Guangdong, China |
FAQ
Q1. How to deliver the shipment?
A1:Generally speaking ,we can ship the products by DHL, UPS ,FEDEX express etc.For big weight and value products,
we suggest to ship by sea.
Q2.What's the emitting window do I need?
A2:It depends on your curing area.Or you can tell us your area and we will recommend our best solution to you.
Q3. How to choose the wavelength?
A3: Our normal wavelength is 365nm,385nm,395nm and 405nm. Different application will use different wavelength.Or you can inquire us to confirm.
Q4: How to place an order?
A4: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.
Q5: What about the after-sales service?
A5: YM provides spare parts for replacement, and 24 hours online and video technical support.
Application
UV lamps are widely used in printing, plastic, wood, footwear, glass, handicraft polishing, painting and other fields.
1. In terms of spraying: ordinary phone case spraying, cosmetic case spraying, Plastic spraying of MP3 small
household appliance shells and other materials
2. Printing: Screen printing, offset printing, 5-color printing, etc. Use UV curing lamps to dry UV ink.
3. In the footwear industry, it is the use of ultraviolet radiation to illuminate the material on the sole of the shoe,
causing a chemical reaction and creating a good affinity between the adhesive and the sole and upper.
4. In terms of wood industry, it is used for curing UV paint coatings on the surface. Due to the excellent performance
