Product Details
Place of Origin: CHINA
Brand Name: YM
Certification: High-tech Enterprise Certificate
Model Number: UV Light Module 4040
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 100000
Product Name: |
UV Light Module 5062 |
Power: |
360W |
Module Size: |
50mm*62mm*3.0mm |
Luminous Size: |
50mm*42mm |
Voltage: |
34-38V |
Current: |
6-8.5A |
LED Chips: |
Optional(LG/Epileds/ Seoul) |
Encapsulation Process: |
High Temperature Quartz Lens Package |
View Angle Of The Lens: |
60, 120 Degree |
Warranty: |
2 Years |
Product Name: |
UV Light Module 5062 |
Power: |
360W |
Module Size: |
50mm*62mm*3.0mm |
Luminous Size: |
50mm*42mm |
Voltage: |
34-38V |
Current: |
6-8.5A |
LED Chips: |
Optional(LG/Epileds/ Seoul) |
Encapsulation Process: |
High Temperature Quartz Lens Package |
View Angle Of The Lens: |
60, 120 Degree |
Warranty: |
2 Years |

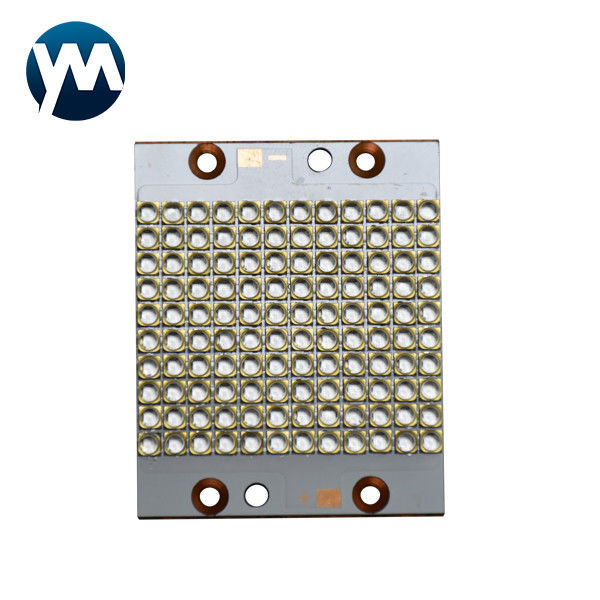

UV Light Module 360W 3535 3W led chip lamp beads uv curing system
| Product Name | UV Light Module 5062 |
| Power | 360W |
| Color | UV |
| Number of lamp beads | 120 pcs |
| Diode type | 3535 smd |
| Lens Material of Diode | Silica gel or quartz |
| View Angle of the Lens | 60, 120 degree |
| Module size | 50mm*62mm*3.0mm |
| Luminous Size | 50mm*42mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 34-38V |
| Current | 6-8.5A |
| Chip Material | LG,Seoul,Epileds |
| Encapsulation process | High temperature quartz lens package |
| Module material | 3.0mm Copper substrate |
| Lifespan (hours) | 20000-30000 |
| Warranty | 2 years |
| Application | Apply in various UV printing industries, painting, |
| Place of Origin | Shenzhen, Guangdong, China |
Why Choose Us
1) Good Price
We offer the manufacturer's direct selling price.
2) Quality Assurance
We have our own R&D team,Every product has a professional test before shipment.
3) Customized Service
We can customize products as your need.
4) After-sale Service
We provide superior and timely pre-sales advice and after-sales service,
Any questions about UV LED will be answered by a professional engineer in 12 hours.
FAQ
Q1. Are you a factory?
A: Yes! We are a factory in Shenzhen. We have been producing UV LED products for seven years.
Q2. What are your main products?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV equipment.
Q3. Do you have any MOQ restrictions on LED light orders?
Do not! One is also acceptable.
Q4. Can we customize products?
A: Yes! We can produce according to your requirements or technical drawings.
Q5. How about the quality of the leds?
A: Please do not worry about the quality. Our company is the main manufacturer of LEDs in China.
Q6. What will be the delivery time and what will be the mode of payment?
A: Our delivery time will be 3-10days.
The payment can be T/T transaction/ alibaba payment.
Q7. Could I put my logo on it?
A: Of course. The logo can be made according to your requirements once you reached our MOQ.
Q8. Can adjustable of UV intensity ?
A: Yes, the intensity is 0-100% adjustable. We designed different.
Matters needing attention
Warm reminder, in order to make our products play the best performance, and to reduce
the failure of customers when using the product, please pay attention to:
1) During the entire use process, all people who are in direct contact with UVLEDs should
take measures to prevent and eliminate static electricity, and do not directly touch UV LEDs with their hands.
2) Electrical parameters such as current and voltage must not exceed the rated value.
3) The welding time should not exceed 3S;
If you have other needs, please contact us to provide you with the best solution.
