Product Details
Place of Origin: CHINA
Brand Name: YM
Certification: High-tech Enterprise Certificate
Model Number: UV Light Module 5635
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 100000
Product Name: |
UV Light Module 5635 |
Power: |
30W |
Module Size: |
56.5mm*35mm*2.0mm |
Luminous Size: |
56.5mm*3.5mm |
Voltage: |
34-38V |
Current: |
500-700MA |
LED Chips: |
LG/Epileds/ Seoul |
Encapsulation Process: |
High Temperature Quartz Lens Package |
View Angle Of The Lens: |
60, 120 Degree |
Warranty: |
2 Years |
Product Name: |
UV Light Module 5635 |
Power: |
30W |
Module Size: |
56.5mm*35mm*2.0mm |
Luminous Size: |
56.5mm*3.5mm |
Voltage: |
34-38V |
Current: |
500-700MA |
LED Chips: |
LG/Epileds/ Seoul |
Encapsulation Process: |
High Temperature Quartz Lens Package |
View Angle Of The Lens: |
60, 120 Degree |
Warranty: |
2 Years |

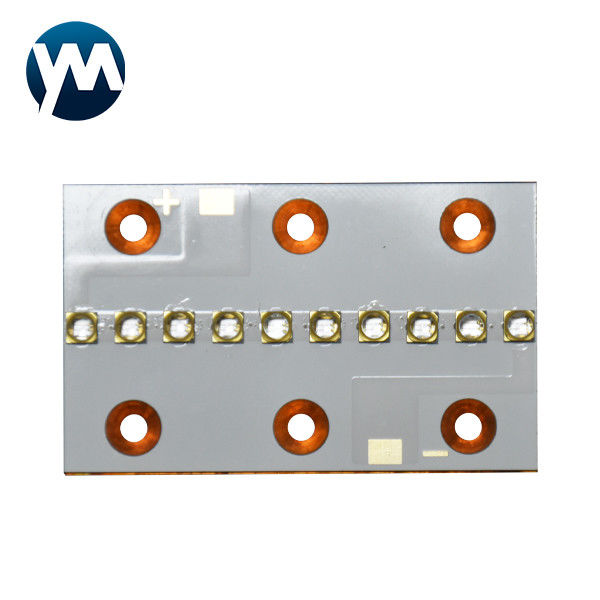

UV Light Module 30W Line light source module uv led curing lamp
| Product Name | UV Light Module 5635 |
| Power | 30W |
| Color | UV |
| Number of lamp beads | 10 pcs |
| Diode type | 3535 smd |
| Lens Material of Diode | Silica gel or quartz |
| View Angle of the Lens | 60, 120 degree |
| Module size | 56.5mm*35mm*2.0mm |
| Luminous Size | 56.5mm*3.5mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 34-38V |
| Current | 500-700MA |
| Chip Material | LG,Seoul,Epileds |
| Encapsulation process | High temperature quartz lens package |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 20000-30000 |
| Warranty | 2 years |
| Application | Apply in various UV printing industries, painting, |
| Place of Origin | Shenzhen, Guangdong, China |
FAQ
Q1. Are you a factory?
A: Yes! We are a factory in Shenzhen city, and we have professional team of workers, designers and inspector.
Q2. What are your main products?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV equipment.
Q3. Do you have any MOQ restrictions on LED light orders?
A: Do not! One is also acceptable.
Q4. Can we customize products?
A: Yes! We can produce according to your requirements or technical drawings.
Q5. How about the quality of the leds?
A: Please do not worry about the quality. Our company is the main manufacturer of LEDs in China.
The payment can be T/T transaction/ alibaba payment.
Q6. Could I put my logo on it?
A: Of course. The logo can be made according to your requirements once you reached our MOQ.
Q7. Can adjustable of UV intensity ?
A: Yes, the intensity is 0-100% adjustable. We designed different.
Q8. How many days do you need for preparing order?
A: We need 3-7 days for normal order, Custom product cycle is 15-20 days.
Q9. How long warranty you can offer for the equipments?
A: yes, we offer 1 year warranty for our equipments.
Q10. What is the life of the equipments?
A: In general, the life of up to 20,000 hours, at least 2 years do not need to be replaced.
Attention should be paid to welding high-power UV LED:
1) The welding time should not exceed 3S;
2) Welding temperature should be less than 260 degrees Celsius.
3) Reflow welding is allowed only once.
4) When welding, distinguish positive and negative polarity, and avoid lens to avoid damage to lens.
If you have other needs, please contact us to provide you with the best solution.
