Home > products > COB UV LED > UV LED COB Module 80W High Power COB Curing Module Quartz Lens Spotlight

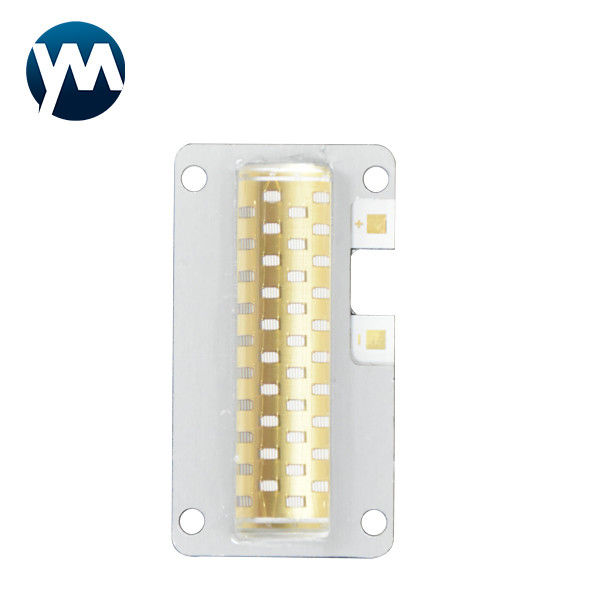

UV LED COB Module 80W High Power COB Curing Module Quartz Lens Spotlight

Product Details

Place of Origin: CHINA

Brand Name: YM

Certification: High-tech Enterprise Certificate

Model Number: UV LED COB Module 4122

Payment & Shipping Terms

Minimum Order Quantity: Negotiate

Price: Negotiate

Packaging Details: Carton

Delivery Time: 7-10 work days

Payment Terms: T/T

Supply Ability: 100000

Get Best Price
Highlight:

UV LED COB 80W

,

UV LED COB Module 80W

,

80W COB Curing Module

Product Name:
UV LED COB Module 4122
Power:
80W
Module Size:
41mm*22mm
Luminous Size:
36.5mm*9mm
Voltage:
34-38V
Current:
2-2.8A
LED Chips:
Epileds
Encapsulation Process:
High Temperature Quartz Lens Package COB Module
View Angle Of The Lens:
120 Degree
Warranty:
2 Years
Product Name:
UV LED COB Module 4122
Power:
80W
Module Size:
41mm*22mm
Luminous Size:
36.5mm*9mm
Voltage:
34-38V
Current:
2-2.8A
LED Chips:
Epileds
Encapsulation Process:
High Temperature Quartz Lens Package COB Module
View Angle Of The Lens:
120 Degree
Warranty:
2 Years
UV LED COB Module 80W High Power COB Curing Module Quartz Lens Spotlight

UV LED COB Module 80W High-power COB curing module Quartz lens spotlight

Product Description

The UV LED module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
Product Name UV LED COB Module 4122
Power 80W
Color UV
Number of lamp beads 40 pcs
Diode type COB smd
Lens Material of Diode quartz
View Angle of the Lens 120 degree
Module size 41mm*22mm
Luminous Size 36.5mm*9mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 34-38V
Current 2-2.8A
Chip Material Epileds
Encapsulation process High temperature quartz lens package COB Module
Module material 2.5mm COB Copper substrate
Lifespan (hours) 20000-30000
Warranty 2 years
Application Apply in various UV printing industries, painting,
Place of Origin Shenzhen, Guangdong, China

 UV LED COB Module 80W High Power COB Curing Module Quartz Lens Spotlight 0UV LED COB Module 80W High Power COB Curing Module Quartz Lens Spotlight 1UV LED COB Module 80W High Power COB Curing Module Quartz Lens Spotlight 2

Reason to select US?
1) Fiar pricing
Our prices are wholesale factory prices.
2) Quality Control
Our manufacturing team is based of highly skilled professional which check quality of every product before shipping.
3) Customization options
We provide customized products according to your needs.


FAQ
Q1. Are you a factory?
A: Yes! We are a factory in Shenzhen. We have been producing UV LED products for seven years.
Q2. What are your main products?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV equipment.
Q3. How about the quality of the leds?
A: Please do not worry about the quality. Our company is the main manufacturer of LEDs in China.
The payment can be T/T transaction/ alibaba payment.

Q4. How do i know what wavelength is suitable for me?
A: Normally Wavelength of UV LED lamps is between 365-405nm, inkjet printers use 395nm,

printing machine use 385/395nm , UV glue curing requires 365nm.
Q5. What kind of brands do you use to produce UV LEDs?
A: We use the following brands Epileds,LG,Seoul.
Q6. What kind of materials do you use to make the lamps and lens ?
A: We use Aluminum for lamps and quartz for lens.


Please pay special attention
To make sure that the products works at there best and to reduce any errors of usage please pay attention to the following tips.
1) During operation, Users handing the UV LED products should take precautions to prevent electric shocks and beware of the shock hazards.
2) While using the products make sure to keep in check the time of operation and temprature. Please carefully distinguish between the postive and negative poles of the product.

3) Please make sure that the electricity parameters such as voltage and current does not exceed the rated clectricity parameters of the products.

For high power weliding using UV LED the following points should be followed
1) The operation of welding should not exceed the time limit;
2)Make sure that the welding temprature is below 260C degrees at all time.



If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
