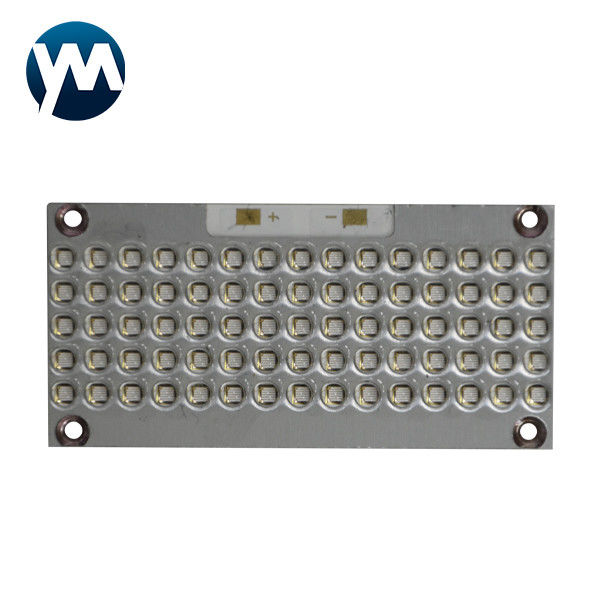

Name: Copper Substrate SMD COB LED 200W Printing Industries 365nm 385nm 395nm
Brand: shenzhen yuanming co., ltd
SKU: UV LED COB Module 6230
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: YM

Certification: High-tech Enterprise Certificate

Model Number: UV LED COB Module 6230

Payment & Shipping Terms

Minimum Order Quantity: 2 pcs

Price: Negotiate

Packaging Details: Carton

Delivery Time: 7-10 work days

Payment Terms: T/T

Supply Ability: 100000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                Copper substrate COB UV LED, 200W SMD UV LED, 365nm printing industry LED


Name:	COB UV LED Module 6230	Size:	62mm30nm3.0mm
Voltage:	51-57V	Current:	2.5-3.5A
View Angle Of The Lens:	60, 120 Degree

Name:	COB UV LED Module 6230
Size:	62mm30nm3.0mm
Voltage:	51-57V
Current:	2.5-3.5A
View Angle Of The Lens:	60, 120 Degree

Copper Substrate SMD COB LED 200W Printing Industries 365nm 385nm 395nm

Copper Substrate SMD COB LED 200W Printing Industries High Power 365nm 385nm 395nm 405nm

COB UV LED Module Product Description

1. High Irradiance Output – Delivers superior UV intensity for deep curing and high-speed production lines.

2. Speed-Synchronized Auto Dimming – Light intensity automatically adjusts to match printer speed, ensuring

complete curing without over-exposure.

3. Adjustable Intensity with Digital Display – User-friendly control with real-time digital readout from 0% to 100%.

4. Zonal On/Off Control – Activate partial or full LED segments according to print size. Saves energy and reduces heat buildup

on narrow prints.

5. Real-Time Temperature Monitoring – Active thermal management with temperature display and over-temperature protection.

Specification of COB UV LED Module


			Product Name
			COB UV LED Module 6230

			Power
			200W

			Color
			UV

			Number of lamp beads
			75 pcs

			Diode type
			COB smd

			Lens Material of Diode
			quartz

			View Angle of the Lens
			60, 120 degree

			Module size
			62mm*30nm*3.0mm

			Luminous Size
			62mm*20mm

			Wavelength
			365nm,385nm,395nm,405nm

			Voltage
			51-57V

			Current
			2.5-3.5A

			Chip Material
			LG,Seoul,Epileds

			Encapsulation process
			High temperature quartz lens package lamp beads

			Module material
			3.0mm COB Copper substrate

			Lifespan (hours)
			20000

			Warranty
			1 year

			Application
			Apply in various UV printing industries, painting,

			Place of Origin
			Shenzhen, Guangdong, China

Copper Substrate SMD COB LED 200W Printing Industries 365nm 385nm 395nm 0

Application of UV LED Module

UV curing is a high-speed, solventless photochemical process that uses high-intensity electronic ultraviolet (UV) light

to change inks, coatings, adhesives or other photo-reactive substances through polymerization into an instantly fixed-in-place solid.

“Drying,” by contrast, solidifies chemistry through evaporation, oxidation or absorption. With UV curing, the cured substances

become securely adhered to the substrate onto which they were applied, with adequate depth of cure without being tacky, sticky or flakey.

why choose us

1. Well-known chip material

2. 99.99% gold wire bonding

3. 2 years warranty

4. Over 10 years work experience technical service team

5. 24 hours service Professional sales team

6. Free Sample is available

7. Fast delivery

8.100% QC inspection Before Shippment

9. Aiming at the consult of "high quality, zero defect”, give you the best quality, best service.

If you have other needs, please contact us to provide you with the best solution.

Umi@ymleduv.com , Thank you for your attention.
