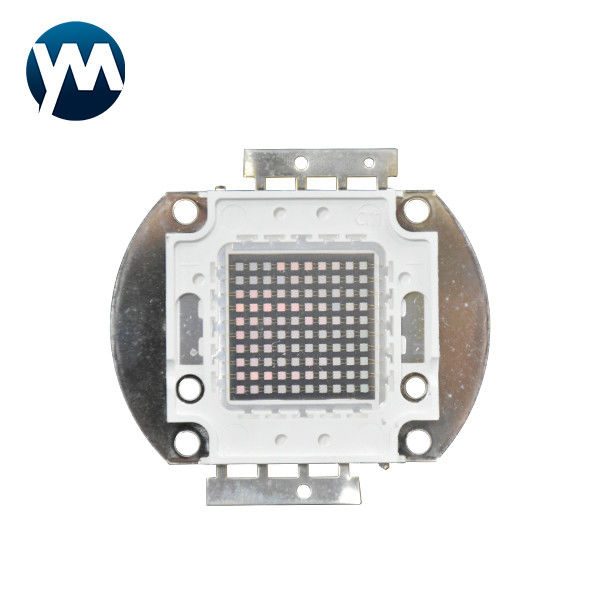

COB UV LED Module 300W COB High Power LED Module Integrated Module

Name: COB UV LED Module 300W COB High Power LED Module Integrated Module
Brand: shenzhen yuanming co., ltd
SKU: UV LED COB Module 5256
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: YM

Certification: High-tech Enterprise Certificate

Model Number: UV LED COB Module 5256

Payment & Shipping Terms

Minimum Order Quantity: 2 pcs

Price: Negotiate

Packaging Details: Carton

Delivery Time: 7-10 work days

Payment Terms: T/T

Supply Ability: 100000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                300W COB UV LED module, high power UV LED module, integrated COB UV LED


Product Name:	UV LED COB Module 5256	Power:	300W
Module Size:	52mm*56mm	Luminous Size:	25mm*25mm
Voltage:	34-38V	Current:	5-7A
LED Chips:	Epileds	Encapsulation Process:	High Temperature Quartz Lens Package COB Module
View Angle Of The Lens:	180 Degree	Warranty:	1 Year

Product Name:	UV LED COB Module 5256
Power:	300W
Module Size:	52mm*56mm
Luminous Size:	25mm*25mm
Voltage:	34-38V
Current:	5-7A
LED Chips:	Epileds
Encapsulation Process:	High Temperature Quartz Lens Package COB Module
View Angle Of The Lens:	180 Degree
Warranty:	1 Year

COB UV LED Module 300W COB High Power LED Module Integrated Module

COB UV LED Module 300W COB high power led module Integrated module

COB UV LED Module Product Description

The UV LED module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,

so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.


			Product Name
			COB UV LED Module 5256

			Power
			300W

			Color
			UV

			Number of lamp beads
			100 pcs

			Diode type
			COB smd

			Lens Material of Diode
			quartz

			View Angle of the Lens
			180 degree

			Module size
			52mm*56mm

			Luminous Size
			25mm*25mm

			Wavelength
			365nm,385nm,395nm,405nm

			Voltage
			34-38V

			Current
			5-7A

			Chip Material
			Epileds

			Encapsulation process
			High temperature quartz lens package COB Module

			Module material
			1.5mm COB Copper substrate

			Lifespan (hours)
			20000

			Warranty
			1 year

			Application
			Apply in various UV printing industries, painting,

			Place of Origin
			Shenzhen, Guangdong, China

COB UV LED Module 300W COB High Power LED Module Integrated Module 0

FAQ

Q1 : Can your products’ label, packaging, design be customized?

A : Yes, we offer customization service on these.

Q2 : What is your monthly production capacity?

A : Our factory production capacity is 5,000 sets of uv curing systems per month.

Q3 : What is your minimum order quantity?

A : Normally MOQ 2unit, but we also accept one sample .

Q4 : Can I get a sample for quality check?

A : Yes, we offer sample.

Q5 : How soon is the lead time?

A : For sample order, 3-7 days. For bulk order, 8-16 days.

Q6 : What is the lifetime of your uv curing systems?

A : Our uv curing systems can work at least 3 years, these lighting bulbs should be replaced regularly.

If you have other needs, please contact us to provide you with the best solution.

Umi@ymleduv.com , Thank you for your attention.
