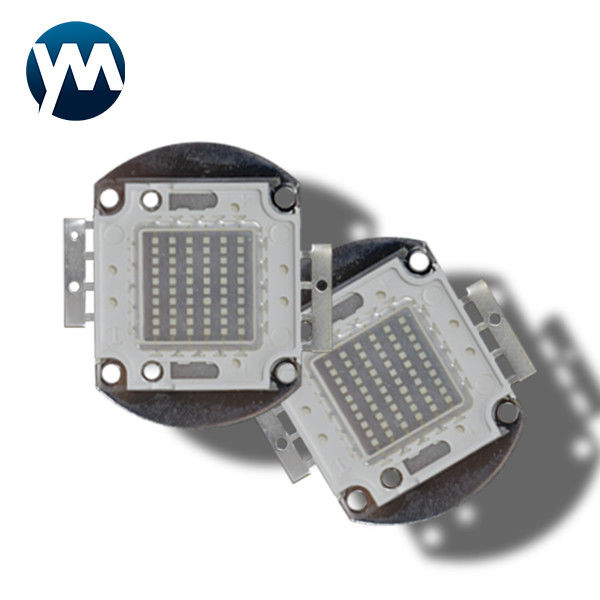

180W COB UV LED Module Integrated UV Glue Curing Lamp 365nm 395nm

Name: 180W COB UV LED Module Integrated UV Glue Curing Lamp 365nm 395nm
Brand: shenzhen yuanming co., ltd
SKU: UV LED COB Module 5256-2
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: YM

Certification: High-tech Enterprise Certificate

Model Number: UV LED COB Module 5256-2

Payment & Shipping Terms

Minimum Order Quantity: 2 pcs

Price: Negotiate

Packaging Details: Carton

Delivery Time: 7-10 work days

Payment Terms: T/T

Supply Ability: 100000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                180W COB UV LED module, UV glue curing lamp 365nm, integrated UV LED 395nm


Product Name:	COB UV LED Module 5256-2	Power:	180W
Module Size:	56*52MM	Luminous Size:	25MM*25MM
Voltage:	34-38V	Current:	3-4.2A

Product Name:	COB UV LED Module 5256-2
Power:	180W
Module Size:	56*52MM
Luminous Size:	25MM*25MM
Voltage:	34-38V
Current:	3-4.2A

180W COB UV LED Module Integrated UV Glue Curing Lamp 365nm 395nm

180W COB UV LED Module COB Integrated Module UV Glue Curing Lamp 365nm 395nm

COB UV LED Module Product Description

The UV LED module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,

so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.


			Product Name
			COB UV LED Module 5256-2

			Power
			180W

			Color
			UV

			Number of lamp beads
			60 pcs

			Diode type
			COB smd

			Lens Material of Diode
			quartz

			View Angle of the Lens
			180 plane

			Module size
			56*52mm

			Luminous Size
			25*25mm

			Wavelength
			365nm,385nm,395nm,405nm

			Voltage
			34-38V

			Current
			3-4.2A

			Chip Material
			Epileds

			Encapsulation process
			High temperature quartz lens package lamp

			Module material
			COB Copper substrate

			Lifespan (hours)
			20000

			Warranty
			1 year

			Application
			Apply in various UV printing industries, painting,

			Place of Origin
			Shenzhen, Guangdong, China

FAQ

Q1: Can you accept the sample order?
Yes, we can. we welcome sample order to test and check quality.

Q2: Could I put my logo on it?
Of course. The logo can be made according to your requirements once you reached our MOQ.

Q3: What's your packaging?
We have a color box and a carton. Welcome to customize if you need it.

Q4: What's your lead time?
3-7 days for the sample orders in the stock. 25-30 days for mass production.

Q5: What's your quotation terms?
FOB, CIF, CFR, EXW are available.

Application of UV LED Module

UV LED Module are mainly used in printing curing, anti-counterfeiting identification, purification (water, air, etc.) fields, computer data storage and uv printer. Moreover, with the development of technology, new applications will continue to appear to replace the original technology and products. Ultraviolet LEDs have broad market application prospects.
