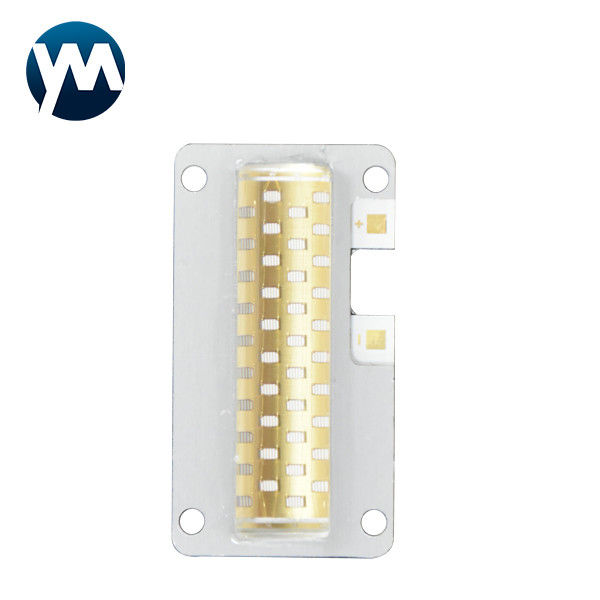

High Power 80W UV LED COB Module A3 / A4 Curing Lamp Printing Industries

Product Details

Place of Origin: CHINA

Brand Name: YM

Certification: High-tech Enterprise Certificate

Model Number: UV LED COB Module 4122

Payment & Shipping Terms

Minimum Order Quantity: Negotiate

Price: Negotiate

Packaging Details: Carton

Delivery Time: 7-10 work days

Payment Terms: T/T

Supply Ability: 100000

Get Best Price
Highlight:

A4 Lamp Printing LED COB Module

,

80W UV LED COB Module

,

Curing Lamp Printing COB UV LED

Product Name:
UV LED COB 4122
Power:
80W High Power
Voltage:
34V-38V
Current:
2A-2.8A
Diode Type:
COB Smd
Lens Material Of Diode:
Quartz
Product Name:
UV LED COB 4122
Power:
80W High Power
Voltage:
34V-38V
Current:
2A-2.8A
Diode Type:
COB Smd
Lens Material Of Diode:
Quartz
High Power 80W UV LED COB Module A3 / A4 Curing Lamp Printing Industries

80W UV LED COB Module High Power A3 / A4 Curing Lamp Printing Industries 365nm 385nm 395nm​​



Description of UV LED COB Module:

UV LED COB Module can be applied with either Water-cooling or wind-cooling method.
Other curing size and voltage can be designed according your requirement,

including mix wavelength special wavelength and curing size.
High efficiency and low consumption.
Apply in various printing industries, painting, and glue.



Specification of UV LED COB Module:

Product Name UV LED COB Module 4122
Power 80W
Color UV
Number of lamp beads 40 pcs
Diode type COB smd
Lens Material of Diode quartz
View Angle of the Lens 120 degree
Module size 41mm*22mm
Luminous Size 36.5mm*9mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 34-38V
Current 2-2.8A
Chip Material Epileds
Encapsulation process High temperature quartz lens package COB Module
Module material 2.5mm COB Copper substrate
Lifespan (hours) 20000-30000
Warranty 2 years
Application Apply in various UV printing industries, painting,
Place of Origin Shenzhen, Guangdong, China

High Power 80W UV LED COB Module A3 / A4 Curing Lamp Printing Industries 0High Power 80W UV LED COB Module A3 / A4 Curing Lamp Printing Industries 1High Power 80W UV LED COB Module A3 / A4 Curing Lamp Printing Industries 2

Application of UV LED Module

UV LED module is mainly used in biomedical, anti-counterfeiting identification, purification (water, air, etc.) fields, computer data storage and military. Moreover, with the development of technology, new applications will continue to appear to replace the original technology and products. Ultraviolet LED has broad market application prospects. For example, ultraviolet LED phototherapy instrument is a very popular medical device in the future, but the technology is still in its infancy. long.



1. advertising Printing

2. 3D printing

3. Bar code printing

4. PCB board protection

5. Lens UV glue bonding

6. touch screen protection

7. furniture Varnish Drying

8. Medical instrument

9. Precision optics



Feature of UV LED Module

• High power and efficiency, high reliability

• Long operation lifetime, low light failure

• Environmental protection, energy saving

• Zener diode protection device



If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
