Product Details
Place of Origin: CHINA
Brand Name: YM
Certification: High-tech Enterprise Certificate
Model Number: UV Light Module 170121
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 100000
Product Name: |
UV Light Module 170121 |
Power: |
230W |
Module Size: |
170mm*121mm*2.0mm |
Luminous Size: |
140mm*85mm |
Voltage: |
37.5-42V |
Current: |
3.5-4.9A |
LED Chips: |
Seoul, LG, Epileds |
Encapsulation Process: |
High Temperature Quartz Lens Package Lamp Beads |
View Angle Of The Lens: |
60, 120degree |
Warranty: |
2 Years |
Product Name: |
UV Light Module 170121 |
Power: |
230W |
Module Size: |
170mm*121mm*2.0mm |
Luminous Size: |
140mm*85mm |
Voltage: |
37.5-42V |
Current: |
3.5-4.9A |
LED Chips: |
Seoul, LG, Epileds |
Encapsulation Process: |
High Temperature Quartz Lens Package Lamp Beads |
View Angle Of The Lens: |
60, 120degree |
Warranty: |
2 Years |

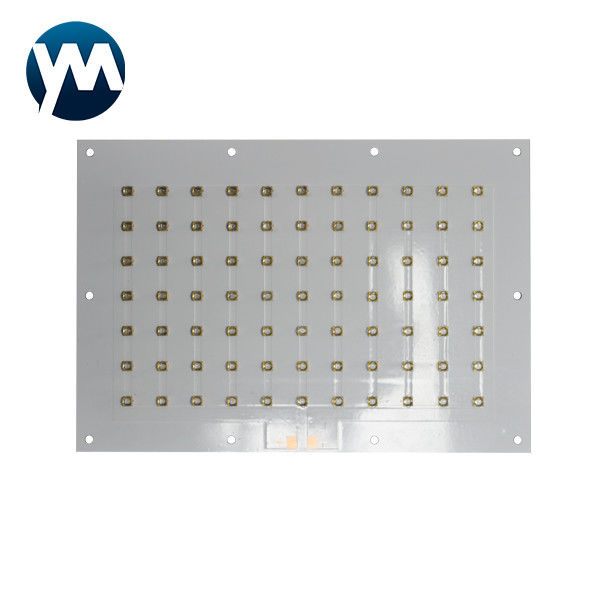

UV Light Module 230W 3535 quartz lens lamp beads 365nm curing module
| Product Name | UV Light Module 170121 |
| Power | 230W |
| Color | UV |
| Number of lamp beads | 77 pcs |
| Diode type | 3535 smd |
| Lens Material of Diode | Silica gel or quartz |
| View Angle of the Lens | 60, 120degree |
| Module size | 170mm*121mm*2.0mm |
| Luminous Size | 140mm*85mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 37.5-42V |
| Current | 3.5-4.9A |
| Chip Material | Seoul,LG,Epileds |
| Encapsulation process | High temperature quartz lens package module |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 20000-30000 |
| Warranty | 2 years |
| Application | Apply in various UV printing industries, painting,UV inks, UV glues, and touch screens. |
| Place of Origin | Shenzhen, Guangdong, China |
FAQ
Q1: Do you have any MOQ?
A: We don't have a MOQ. WE also provide customized original products if you need.
Q2: How can I place an order?
A: 1. Provide us your requirements.
2. Our company will draft an quotation and provide you with our best suggestions.
3. Our company will issue an invoice and you will confirm the invoice.
4.Make the payment after confirming the Invoice.
5.The goods will be shipped as soon as possible after payment.
Q3: Can I order sample products?
A:Yes, you can order the sample product.The policy is that you will initially pay for the product and shipping. The payment will be refunded once you order product or return the sample products.
Q4: How long will it take you to prepare the order?
A: For normal product it takes 1-3 days for customized product it can take upto 10 days.
Q5: Do you give any warranty for your products?
A: All our products are under warranty for at least 1 year. During this period if you run into some issue, you can contact us and we will replace or repair the product for you.
Attention should be paid to welding high-power UV LED:
1) The welding time should not exceed 3S;
2) The welding temperature should be lower than 260 degrees Celsius.
3) Please make sure that the electrical parameters such as voltage and current do not exceed the rated current parameters of the product.
4) Take good heat dissipation measures, especially high-power UVLEDs, and try to ensure sufficient heat dissipation area.
5) In order to extend the service life of UV LEDs, it is recommended to use a stable constant current drive power supply or IC instead of a constant voltage drive power supply or IC.
If you have other needs, please contact us to provide you with the best solution.
