Product Details
Place of Origin: CHINA
Brand Name: YM
Certification: High-tech Enterprise Certificate
Model Number: UV Light Module 10040
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 100000
Product Name: |
UV Light Module 10040 |
Power: |
168W |
Module Size: |
100mm*40mm*2.0mm |
Luminous Size: |
98mm*19mm |
Voltage: |
47.5-53V |
Current: |
2-2.8A |
LED Chips: |
Seoul/ LG/ Epileds |
Encapsulation Process: |
High Temperature Quartz Lens Package Module |
View Angle Of The Lens: |
60, 120degree |
Warranty: |
1Years |
Product Name: |
UV Light Module 10040 |
Power: |
168W |
Module Size: |
100mm*40mm*2.0mm |
Luminous Size: |
98mm*19mm |
Voltage: |
47.5-53V |
Current: |
2-2.8A |
LED Chips: |
Seoul/ LG/ Epileds |
Encapsulation Process: |
High Temperature Quartz Lens Package Module |
View Angle Of The Lens: |
60, 120degree |
Warranty: |
1Years |

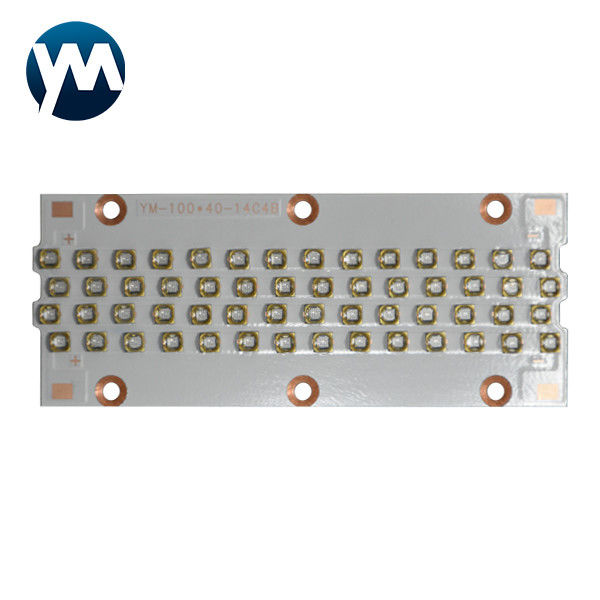

UV Light Module 168W 395nm uv led chip uv led curing lamp 3W lamp beads
| Product Name | UV Light Module 10040 |
| Power | 168W |
| Color | UV |
| Number of lamp beads | 56 pcs |
| Diode type | 3535 smd |
| Lens Material of Diode | Silica gel or quartz |
| View Angle of the Lens | 60, 120degree |
| Module size | 100mm*40mm*2.0mm |
| Luminous Size | 98mm*19mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 47.5-53V |
| Current | 2-2.8A |
| Chip Material | Seoul,LG,Epileds |
| Encapsulation process | High temperature quartz lens package module |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 20000-30000 |
| Warranty | 1 years |
| Application | Apply in various UV printing industries, painting,UV inks, UV glues, and touch screens. |
| Place of Origin | Shenzhen, Guangdong, China |
Reason to select US?
1) Fiar pricing
Our prices are wholesale factory prices.
2) Quality Control
Our manufacturing team is based of highly skilled professional which check quality of every product before shipping.
3) Customization options
We provide customized products according to your needs.
FAQ
Q1: Do you have any MOQ?
A: We don't have a MOQ. WE also provide customized original products if you need.
Q2: How can I place an order?
A: 1. Provide us your requirements.
2. Our company will draft an quotation and provide you with our best suggestions.
3. Our company will issue an invoice and you will confirm the invoice.
4.Make the payment after confirming the Invoice.
5.The goods will be shipped as soon as possible after payment.
Q3: Can I order sample products?
A:Yes, you can order the sample product.The policy is that you will initially pay for the product and shipping. The payment will be refunded once you order product or return the sample products.
Please pay special attention
To make sure that the products works at there best and to reduce any errors of usage please pay attention to the following tips.
1) During operation, Users handing the UV LED products should take precautions to prevent electric shocks and beware of the shock hazards.
2) While using the products make sure to keep in check the time of operation and temprature. Please carefully distinguish between the postive and negative poles of the product.
3) Please make sure that the electricity parameters such as voltage and current does not exceed the rated clectricity parameters of the products.
For high power weliding using UV LED the following points should be followed
1) The operation of welding should not exceed the time limit;
2)Make sure that the welding temprature is below 260C degrees at all time.
If you have other needs, please contact us to provide you with the best solution.
