Product Details
Place of Origin: CHINA
Brand Name: YM
Certification: High-tech Enterprise Certificate
Model Number: UV LED Module 10025
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 100000
Product Name: |
UV LED Module 10025 |
Power: |
60W |
Module Size: |
100mm*25mm*2.0mm |
Luminous Size: |
100mm*3.5mm |
Voltage: |
34-38V |
Current: |
1-1.4A |
Product Name: |
UV LED Module 10025 |
Power: |
60W |
Module Size: |
100mm*25mm*2.0mm |
Luminous Size: |
100mm*3.5mm |
Voltage: |
34-38V |
Current: |
1-1.4A |

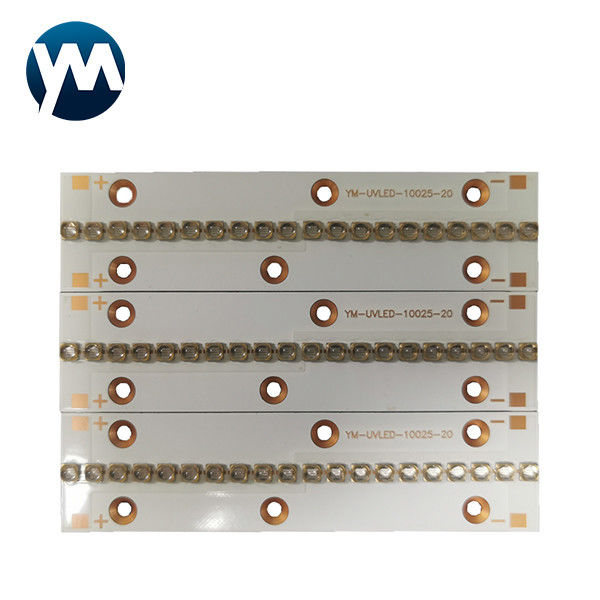

UV Light Module 60w UV LED High Power Led Module 365nm 385nm 395nm 405nm
Description of UV Light Module:
| Product Name | UV Light Module 10025 |
| Power | 60W |
| Color | UV |
| Number of lamp beads | 20 pcs |
| Diode type | 3535 smd |
| Lens Material of Diode | Silica gel or quartz |
| View Angle of the Lens | 60, 120 degree |
| Module size | 100mm*25mm*2.0mm |
| Luminous Size | 100mm*3.5mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 34-38V |
| Current | 1-1.4A |
| Chip Material | LG,Seoul,Epileds |
| Encapsulation process | 2.0mm High temperature quartz lens package |
| Lifespan (hours) | 20000-30000 hours |
| Warranty | 2 years |
| Application | Apply in various UV printing industries, painting, UV lnk,and UV glue. |
| Place of Origin | Shenzhen, Guangdong, China |
Application of UV LED Module
UV LED module is mainly used in biomedical, anti-counterfeiting identification, purification (water, air, etc.) fields, computer data storage and military. Moreover, with the development of technology, new applications will continue to appear to replace the original technology and products. Ultraviolet LED has broad market application prospects. For example, ultraviolet LED phototherapy instrument is a very popular medical device in the future, but the technology is still in its infancy. long.
1. advertising Printing
2. 3D printing
3. Bar code printing
4. PCB board protection
5. Lens UV glue bonding
6. touch screen protection
7. furniture Varnish Drying
8. Medical instrument
9. Precision optics
Attention should be paid to welding high-power UV LED:
1) The welding time should not exceed 3S；
2) Welding temperature should be less than 260 degrees Celsius.
3) Reflow welding is allowed only once.
If you have other needs, please contact us to provide you with the best solution.
