Product Details
Place of Origin: CHINA
Brand Name: YM
Certification: High-tech Enterprise Certificate
Model Number: UV Light Module 5425
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 100000
Product Name: |
UV Light Module 5425 |
Power: |
60W |
Module Size: |
54.5mm*25mm*2.0mm |
Luminous Size: |
42.5mm*6.5mm |
Voltage: |
39-45V |
Current: |
1-1.5A |
Product Name: |
UV Light Module 5425 |
Power: |
60W |
Module Size: |
54.5mm*25mm*2.0mm |
Luminous Size: |
42.5mm*6.5mm |
Voltage: |
39-45V |
Current: |
1-1.5A |

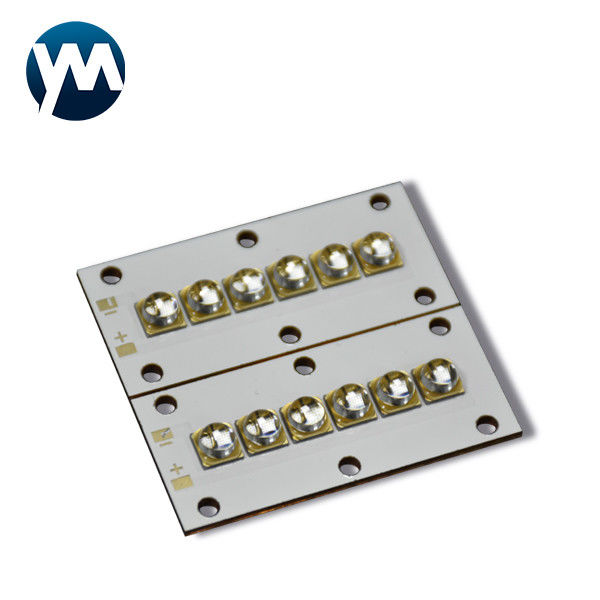

UV Light Module 60W Ultraviolet Lamps 6565 Quartz Lens 365nm 385nm 395nm 405nm
| Product Name | UV Light Module 5425 |
| Power | 60W |
| Color | UV |
| Number of lamp beads | 6 pcs |
| Diode type | 6565/6868 smd |
| Lens Material of Diode | Silica gel or quartz |
| View Angle of the Lens | 30, 60, 90, 120 degree |
| Module size | 54.5mm*25mm*2.0mm |
| Luminous Size | 42.5mm*6.5mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 39-45V |
| Current | 1-1.5A |
| Chip Material | LG,Seoul,Epileds |
| Encapsulation process | High temperature quartz lens package |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 20000-30000 |
| Warranty | 2 years |
| Application | Apply in various UV printing industries, painting, |
| Place of Origin | Shenzhen, Guangdong, China |
why choose us
1. Well-known chip material
2. 99.99% gold wire bonding
3. 2 years warranty
4. Over 10 years work experience technical service team
5. 24 hours service Professional sales team
6. Free Sample is available
7. Fast delivery
8.100% QC inspection Before Shippment
9. Aiming at the consult of "high quality, zero defect”, give you the best quality, best service.
FAQ
Q1. Are you a factory?
A: Yes! We are a factory in Shenzhen. We have been producing UV LED products for seven years.
Q2. What are your main products?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV equipment.
Q3. Do you have any MOQ restrictions on LED light orders?
Do not! One is also acceptable.
Q4. Can we customize products?
A: Yes! We can produce according to your requirements or technical drawings.
Q5. How about the quality of the leds?
A: Please do not worry about the quality. Our company is the main manufacturer of LEDs in China.
The payment can be T/T transaction/ alibaba payment.
If you have other needs, please contact us to provide you with the best solution.
