Product Details
Place of Origin: CHINA
Brand Name: YM
Certification: High-tech Enterprise Certificate
Model Number: UV Light Module 53-35
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 100000
Power: |
140W |
Voltage: |
45-52V |
Product Name: |
UV Light Module 5335 |
Number Of Lamp Beads: |
14 Pcs |
Diode Type: |
6868 Smd |
Lens Material Of Diode: |
Silica Gel Or Quartz |
Power: |
140W |
Voltage: |
45-52V |
Product Name: |
UV Light Module 5335 |
Number Of Lamp Beads: |
14 Pcs |
Diode Type: |
6868 Smd |
Lens Material Of Diode: |
Silica Gel Or Quartz |

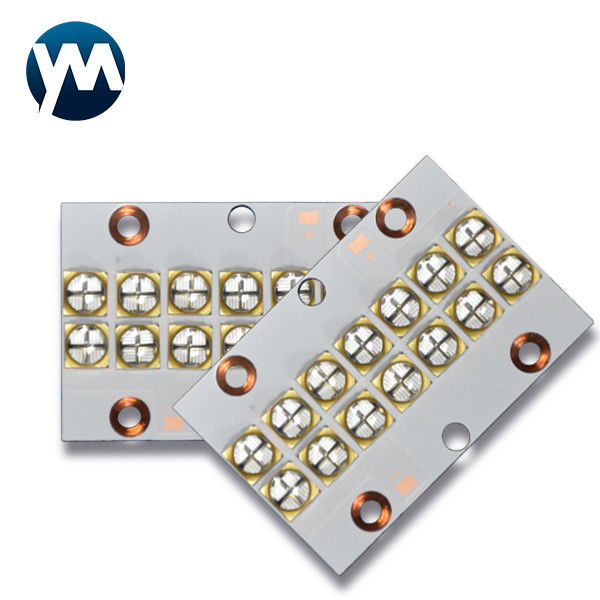

140W UV Light Module Curing High Power Lamp printing industries 365nm 385nm 395nm 405nm
Description of UV Light Module:
| Product Name | UV Light Module 5335 |
| Power | 140W |
| Color | UV |
| Number of lamp beads | 14 pcs |
| Diode type | 6868 smd |
| Lens Material of Diode | Silica gel or quartz |
| View Angle of the Lens | 30, 60, 120 degree |
| Module size | 53mm*35mm*2.0mm |
| Luminous Size | 53mm*15mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 45-52V |
| Current | 2-3A |
| Chip Material | LG,Seoul,Epileds |
| Encapsulation process | High temperature quartz lens package lamp |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 20000-30000 |
| Warranty | 2 years |
| Application | Apply in various UV printing industries, painting, |
| Place of Origin | Shenzhen, Guangdong, China |
why choose us
1. Well-known chip material
2. 99.99% gold wire bonding
3. 2 years warranty
4. Over 10 years work experience technical service team
5. 24 hours service Professional sales team
UV LED Module the Ceramics package, it has a high reliability, good heat dissipation,
are widely used in the disinfection, curing, printing and other fields, for example, ultraviolet disinfection, uv curing, uv ink curing, printing.
If you have other needs, please contact us to provide you with the best solution.
