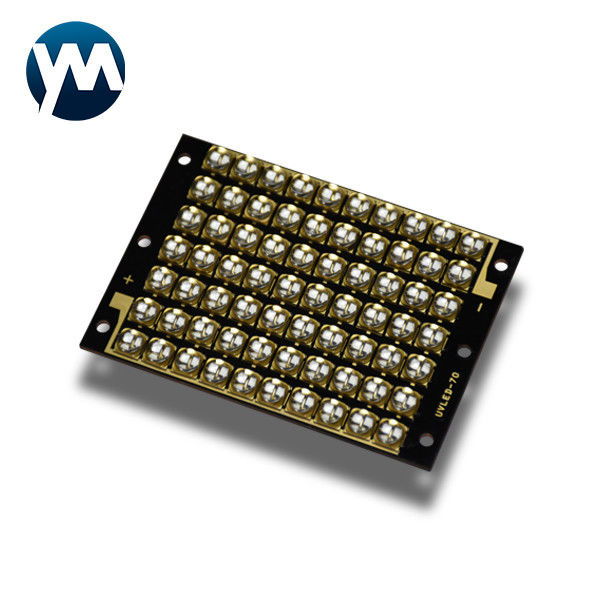

700W 365nm Chip UV LED Module Curing Lamp Quartz Lens 395nm

Product Details

Place of Origin: CHINA

Brand Name: YM

Certification: High-tech Enterprise Certificate

Model Number: UV LED Module 6188

Payment & Shipping Terms

Minimum Order Quantity: Negotiate

Price: Negotiate

Packaging Details: Carton

Delivery Time: 7-10 work days

Payment Terms: T/T

Supply Ability: 100000

Get Best Price
Highlight:

Quartz Lens 395nm UV Light Module

,

700W 365nm UV LED Module

,

Copper Substrate UV LED Module

Product Name:
UV LED Module 6188
Power:
700W
Module Size:
61mm*88mm*2.0mm
Luminous Size:
61mm*71.5mm
Voltage:
45.5-52.5V
Current:
10-15A
Product Name:
UV LED Module 6188
Power:
700W
Module Size:
61mm*88mm*2.0mm
Luminous Size:
61mm*71.5mm
Voltage:
45.5-52.5V
Current:
10-15A
700W 365nm Chip UV LED Module Curing Lamp Quartz Lens 395nm

700W UV Light Module 365nm Chip UV LED Module UV Curing Lamp Quartz Lens 395nm



Description of UV LED Module:
The UV LED module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
We can provide you with customized products.
Product Name UV LED Module 6188
Power 700W
Color UV
Number of lamp beads 70 pcs
Diode type 6565 smd
Lens Material of Diode Silica gel or quartz
View Angle of the Lens 30, 60, 120degree
Module size 61mm*88mm*2.0mm
Luminous Size 61mm*71.5mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 45.5-52.5V
Current 10-15A
Chip Material Seoul,LG,Epileds
Encapsulation process High temperature quartz lens package module
Module material 2.0mm Copper substrate
Lifespan (hours) 20000-30000
Warranty 2 years
Application Apply in various UV printing industries, painting,UV inks, UV glues, and touch screens.
Place of Origin Shenzhen, Guangdong, China

700W 365nm Chip UV LED Module Curing Lamp Quartz Lens 395nm 0700W 365nm Chip UV LED Module Curing Lamp Quartz Lens 395nm 1

Why Choose Us
1) Quality Control
Our manufacturing team is based of highly skilled professional which check quality of every product before shipping.
2) Customization options
We provide customized products according to your needs.
3) Post-sales customer support
We provide trainned customer service personal for our customers to solve all your problems.



FAQ

Q1. Can the intensity of ultraviolet light be adjusted?
A. Yes, the intensity can be adjusted between 0-100%.

We have designed different dimming systems for different products.
Q2. What is the service life of UV LEDs?
A. The life of the LED chip is 20,000 hours. If you pay attention to maintenance during use, it can generally be used for 2-3 years.

Q3. What can Yuanming provide?
A. Our products cover a wide range. We can provide you with high-power LED arrays (1-100W), COB LEDs,  LED modules,
LED lamps, high-power curing UV LEDs and all UV LED application solutions.



If you have other needs, please contact us to provide you with the best solution.
