Product Details
Place of Origin: CHINA
Brand Name: YM
Certification: High-tech Enterprise Certificate
Model Number: UV LED Module 2174
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 100000
Power: |
240W |
Module Size: |
21.5mm*74mm*2.0mm |
Luminous Size: |
21.5mm*56mm |
Voltage: |
52-60V |
Current: |
3-4.5A |
LED Chips: |
LG /Epileds / Seoul |
Power: |
240W |
Module Size: |
21.5mm*74mm*2.0mm |
Luminous Size: |
21.5mm*56mm |
Voltage: |
52-60V |
Current: |
3-4.5A |
LED Chips: |
LG /Epileds / Seoul |

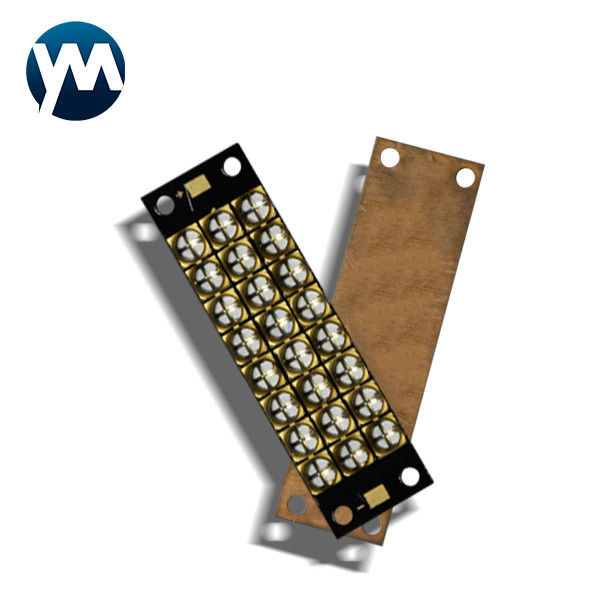

240W UV Light Module UV Ink Curing Lamp High Power 365nm 385nm 395nm 405nm
| Product Name | UV Light Module 2174 |
| Power | 240W |
| Color | UV |
| Number of lamp beads | 24 pcs |
| Diode type | 6565 smd |
| Lens Material of Diode | Silica gel or quartz |
| View Angle of the Lens | 30, 60, 120 degree |
| Module size | 21.5mm*74mm*2.0mm |
| Luminous Size | 21.5mm*56mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 52-60V |
| Current | 3-4.5A |
| Chip Material | Seoul,Epileds,LG |
| Encapsulation process | High temperature quartz lens package |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 20000-30000 |
| Warranty | 2 years |
| Application | Apply in various UV printing industries, painting, |
| Place of Origin | Shenzhen, Guangdong, China |
Reason to select US?
1) Fiar pricing
Our prices are wholesale factory prices.
2) Quality Control
Our manufacturing team is based of highly skilled professional which check quality of every product before shipping.
3) Customization options
We provide customized products according to your needs.
FAQ
Q1. Are you a factory?
A: Yes! We are a factory in Shenzhen. We have been producing UV LED products for seven years.
Q2. What are your main products?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV equipment.
Q3. Do you have any MOQ restrictions on LED light orders?
Do not! One is also acceptable.
Feature of UV LED Module
• High power and efficiency, high reliability
• Long operation lifetime, low light failure
• Environmental protection, energy saving
• Zener diode protection device
If you have other needs, please contact us to provide you with the best solution.
