Product Details
Place of Origin: CHINA
Brand Name: YM
Certification: High-tech Enterprise Certificate
Model Number: UV Light Module 4040
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 100000
Product Name: |
UV Light Module 4040 |
Power: |
20W |
Module Size: |
40mm*40mm*2.0mm |
Luminous Size: |
14mm*6.5mm |
Voltage: |
13-15V |
Current: |
1-1.5A |
Product Name: |
UV Light Module 4040 |
Power: |
20W |
Module Size: |
40mm*40mm*2.0mm |
Luminous Size: |
14mm*6.5mm |
Voltage: |
13-15V |
Current: |
1-1.5A |

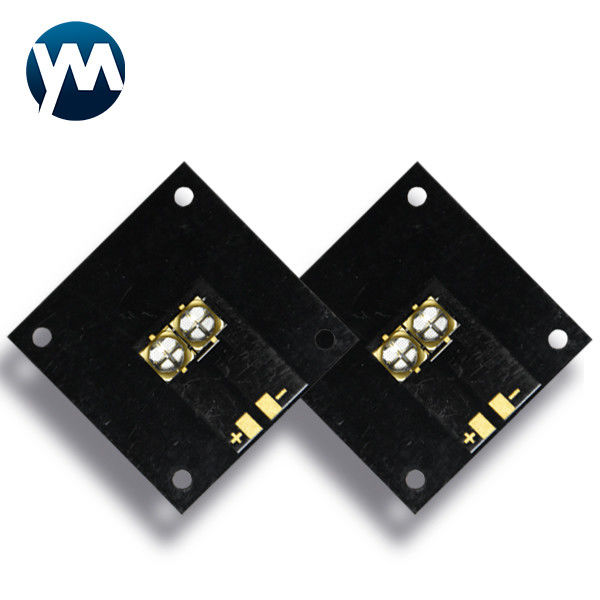

20W UV Light Module Curing Light Quartz Lens Lamp Beads 365nm 385nm 395nm 405nm
| Product Name | UV Light Module 4040 |
| Power | 20W |
| Color | UV |
| Number of lamp beads | 2 pcs |
| Diode type | 6565-6868 smd |
| Lens Material of Diode | Silica gel or quartz |
| View Angle of the Lens | 60, 90, 120 degree |
| Module size | 40mm*40mm*2.0mm |
| Luminous Size | 14mm*6.5mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 13-15V |
| Current | 1-1.5A |
| Chip Material | LG,Seoul,Epileds |
| Encapsulation process | High temperature quartz lens package lamp beads |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 20000-30000 |
| Warranty | 2 years |
| Application | Apply in various UV printing industries, painting, |
| Place of Origin | Shenzhen, Guangdong, China |
FAQ
Q1. Are you a factory?
A: Yes! We are a factory in Shenzhen city, and we have professional team of workers, designers and inspector.
Q2. What are your main products?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV equipment.
Q3. Do you have any MOQ restrictions on LED light orders?
A: Do not! One is also acceptable.
Q4. Can we customize products?
A: Yes! We can produce according to your requirements or technical drawings.
Q5. How about the quality of the leds?
A: Please do not worry about the quality. Our company is the main manufacturer of LEDs in China.
The payment can be T/T transaction/ alibaba payment.
Q6. Could I put my logo on it?
A: Of course. The logo can be made according to your requirements once you reached our MOQ.
Attention should be paid to welding high-power UV LED:
1) The welding time should not exceed 3S;
2) Welding temperature should be less than 260 degrees Celsius.
3) Reflow welding is allowed only once.
