Curing Lamp PCB UV LED Module 20W High Power 365nm 385nm 395nm 405nm

Product Details

Place of Origin: CHINA

Brand Name: YM

Certification: High-tech Enterprise Certificate

Model Number: UV Light Module 4010

Payment & Shipping Terms

Minimum Order Quantity: Negotiate

Price: Negotiate

Packaging Details: Carton

Delivery Time: 7-10 work days

Payment Terms: T/T

Supply Ability: 100000

Get Best Price
Highlight:

26V UV Light Module

,

Curing Lamp PCB UV LED Module

,

20W UV LED Module

Product Name:
UV Light Module 4010
Power:
20W
Module Size:
40mm*10mm*2.0mm
Luminous Size:
27.5mm*3.5mm
Voltage:
24-26V
Current:
0.5-0.7A
Product Name:
UV Light Module 4010
Power:
20W
Module Size:
40mm*10mm*2.0mm
Luminous Size:
27.5mm*3.5mm
Voltage:
24-26V
Current:
0.5-0.7A
Curing Lamp PCB UV LED Module 20W High Power 365nm 385nm 395nm 405nm

UV Light Module 20W High Power 365nm 385nm 395nm 405nm Curing Lamp PCB



UV Light Module Product Description
The UV Light module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
We can provide you with customized products.

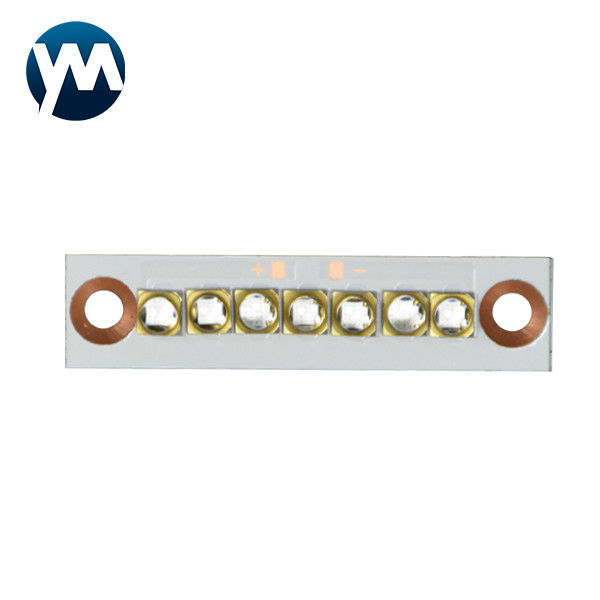

Product Name UV Light Module 4010
Power 20W
Color UV
Number of lamp beads 7 pcs
Diode type 3535 smd
Lens Material of Diode Silica gel or quartz
View Angle of the Lens 60, 120 degree
Module size 40mm*10mm*2.0mm
Luminous Size 27.5mm*3.5mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 24-26V
Current 0.5-0.7A
Encapsulation process High temperature quartz lens package module
Module material 2.0mm Copper substrate
Lifespan (hours) 20000-30000
Warranty 1 years
Application Apply in various UV printing industries, painting,
Place of Origin Shenzhen, Guangdong, China

Why Choose Us

1) Good Price
We can provide the manufacturer's direct selling price and give you the best discount.
2) Quality Assurance
We have our own R&D team,Every product has a professional test before shipment.
3) After-sale Service
We provide high-quality and timely pre-sales consultation and after-sales service.

Any questions about UV LED will be answered by professional engineers within 12 hours.



UV Light Module the Ceramics package, it has a high reliability, good heat dissipation, are widely used in the disinfection, curing, printing and other fields, for example, ultraviolet disinfection, uv curing, uv ink curing, printing.
