Name: Chinese Manufacturer UV LED Light 40w smd 395nm Ultraviolet LED Module
Brand: shenzhen yuanming co., ltd
SKU: YM-40W-4040
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: YM

Certification: High-tech Enterprise Certificate

Model Number: YM-40W-4040

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Negotiate

Packaging Details: Carton

Delivery Time: 7-10 work days

Payment Terms: T/T

Supply Ability: 100000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                40W UV LED light module, 395nm ultraviolet LED module, SMD UV light with warranty


Product Name:	UV Light Module	Power:	40W

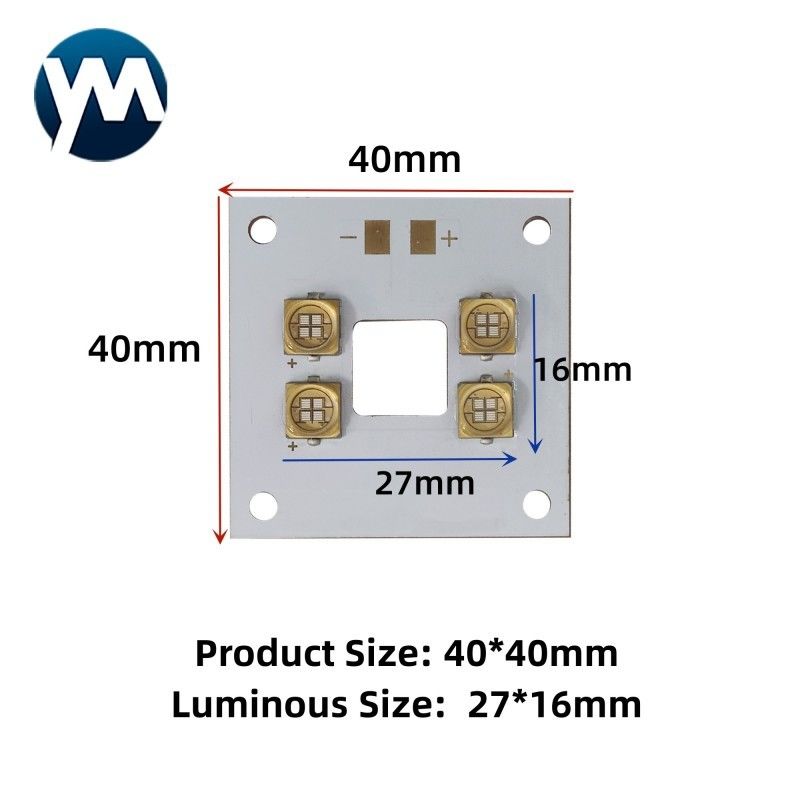

Module Size:	40mm40mm2.0mm	Luminous Size:	16*27mm
Voltage:	25-30V	Current:	1-1.5A
Application:	Disinfection, Sterilization	Lifespan:	20000hrs
Material:	Aluminum Alloy

Product Name:	UV Light Module
Power:	40W
Module Size:	40mm40mm2.0mm
Luminous Size:	16*27mm
Voltage:	25-30V
Current:	1-1.5A
Application:	Disinfection, Sterilization
Lifespan:	20000hrs
Material:	Aluminum Alloy

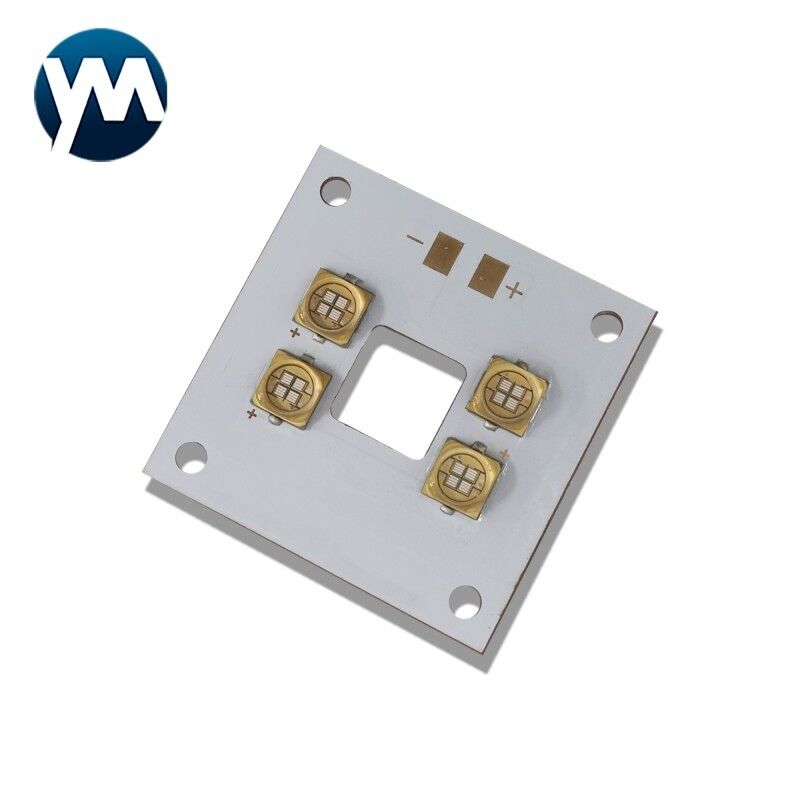

Chinese Manufacturer UV LED Light 40w smd 395nm Ultraviolet LED Module

Description of UV Light Module:

1. Features:Fast, flexible curing and drying

2. Cool Printing Environment: Enables to print on heat sensitive substrates, viz. thin slides, self-adhesive sheet,

stretch PVC materials, and more. Minimum heat resistance allows effective bi-directional calibration.

3. Easy Switch OFF and ON: Easily switch ON and OFF without degradation of intensity. Thus, there is no warm up

time which leads faster operation with high productivity.

4. Long life of the Machine: LED has a long life. Thus, they offer long term benefits without lamp down time or any other

consumable cost. Power Saving: Consumes low electricity. Thus, it saves power and offers cost effective solution.

5. Environmental Friendly: Doesn’t consist mercury (a non-disposable element) and ozone gas that can harm the environment.


			Product Name
			YM-4040-UV LED MODULE

			Power
			40W

			Color
			UV

			Number of lamp beads
			4 pcs

			Diode type
			6565 smd

			Lens Material of Diode
			Quartz

			View Angle of the Lens
			60 degree

			Module size
			40mm*40mm*2.0mm

			Luminous Size
			16mm*27mm

			Wavelength
			365nm, 385nm, 395nm, 405nm

			Voltage
			25-30V

			Current
			1-1.5A

			Chip Material
			LG,Seoul,Epileds

			Encapsulation process
			High temperature quartz lens package module

			Module material
			2.0mm Copper substrate

			Lifespan (hours)
			20000 hours

			Warranty
			1 year

			Application
			Apply in various UV printing industries, painting,

			Place of Origin
			Shenzhen, Guangdong, China

FAQ

Q1. What's the whole UV LED curing system including?

A:The whole UV LED curing system including UV LED Curing Controller + UV LED Lamp head.

Q2. What is the outer package of the product?

A: We use very strong export-specific carton packaging and wooden box packaging to ensure that the goods can be safely delivered to customers.
Q3.How to proceed an order for UV LED curing system?

A:Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

Q4. Is it OK to print my logo on UV LED curing system?

A:Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q5.Do you offer guarantee and installation service for the products?

A:Yes, we offer after-sales service and one year warranty. The installation service can provided but should be payed according

different country and different system.

Application of UV LED Module

1. advertising Printing

2. 3D printing

3. Bar code printing

4. PCB board protection

5. Lens UV glue bonding

6. touch screen protection

7. furniture Varnish Drying

8. Medical instrument

9. Precision optics

Chinese Manufacturer UV LED Light 40w smd 395nm Ultraviolet LED Module 0

If you have other needs, please contact us to provide you with the best solution.

Umi@ymleduv.com , Thank you for your attention.
