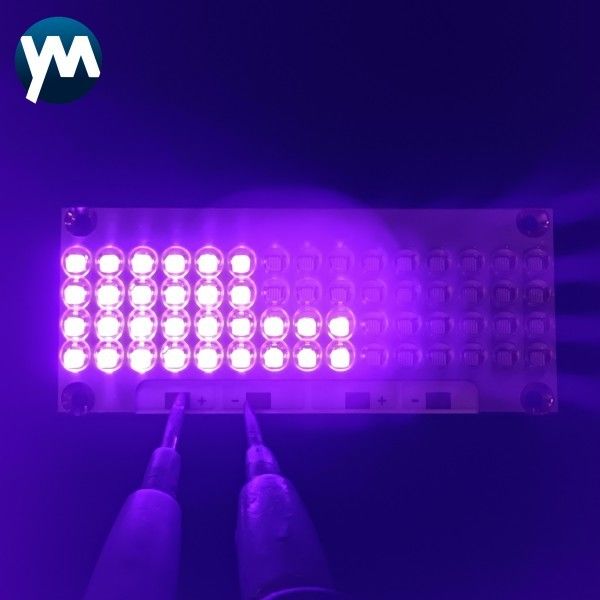

180W quartz UVA Led Light Module led chip 365nm UV Led Module 395nm

Product Details

Place of Origin: CHINA

Brand Name: YM

Certification: High-tech Enterprise Certificate

Model Number: YM-180W-6126

Payment & Shipping Terms

Minimum Order Quantity: Negotiate

Price: Negotiate

Packaging Details: Carton

Delivery Time: 7-10 work days

Payment Terms: T/T

Supply Ability: 100000

Get Best Price
Highlight:
Product Name:
UV Light Module
Power:
180W
Module Size:
61mm*26mm*2.0mm
Luminous Size:
61mm*15mm
Diode Type:
60 Pcs Cob
Voltage:
34-38V*2
Current:
1.5-2.1A*2
Lifespan:
10000h
Material:
Aluminum Alloy
Product Type:
(10 Series 3 Parallel)*2
Application:
Uv Printer
Hs Code:
8543909000
LED Angle:
30°/45°/60°/90° /120°/180°
Encapsulation Process:
High Temperature Quartz Lens Package
Color Temperature:
Purple
Led Chips:
LG/Epileds/ Seoul
Product Name:
UV Light Module
Power:
180W
Module Size:
61mm*26mm*2.0mm
Luminous Size:
61mm*15mm
Diode Type:
60 Pcs Cob
Voltage:
34-38V*2
Current:
1.5-2.1A*2
Lifespan:
10000h
Material:
Aluminum Alloy
Product Type:
(10 Series 3 Parallel)*2
Application:
Uv Printer
Hs Code:
8543909000
LED Angle:
30°/45°/60°/90° /120°/180°
Encapsulation Process:
High Temperature Quartz Lens Package
Color Temperature:
Purple
Led Chips:
LG/Epileds/ Seoul
180W quartz UVA Led Light Module led chip 365nm UV Led Module 395nm

Advantages

1. Long-life: The service life is more than 10 times that of traditional mercury lamp curing machines, about 10000-20000 hours.

2. Cold light source: no thermal radiation, low surface temperature rise of the illuminated object, solving the long-term thermal

damage problem in optical communication and LCD production.

3. Low heat generation: can solve the problem of high heat generation in mercury lamp printing equipment, which is difficult for

workers to tolerate.

4. Instantly lit up, achieving 100 power ultraviolet output without preheating.

5. The service life is not affected by the number of opening and closing times.

6. High energy, stable light output, uniform illumination effect, and improved production efficiency.

7. Customizable effective irradiation area, with lengths ranging from 20mm to 1500mm.

8. It does not contain mercury and does not produce ozone, making it a safer and more environmentally friendly alternative to

traditional light source technology.

9. Low energy consumption, only 10% of the power consumption of traditional mercury lamp curing machines, can save 90% of electricity.

10. The maintenance cost is almost zero, and using UVLED curing equipment can save at least 10000 yuan/unit of consumables per year

Product Name YM-180W-6126 UV LED MODULE
Power 180W
Color UV
Number of lamp beads 60 pcs
Diode type 3535 cob
Lens Material of Diode Silica gel or quartz
View Angle of the Lens 30°/45°/60°/90° /120°/180°
Module size 61mm*26mm*2.0mm
Luminous Size 61mm*15mm
Series-parallel 10 series 3 parallel *2
Wavelength 365nm, 385nm, 395nm, 405nm
Voltage 34-38V*2
Current 1.5-2.1A*2
Chip Material LG,Seoul,Epileds
Encapsulation process High temperature quartz lens package module
Module material 2.0mm Copper substrate
Lifespan (hours) 10000
Warranty 1year
Application Apply in various UV printing industries, painting,
Place of Origin Shenzhen, Guangdong, China



UV Curing System Features

1.High light intensity;

2.Light intensity auto adjust according printer speed;

3.Light intensity and be adjust and display;

4.Light can on/off part or full according different print size;

5.Temperature display and over temperature control;

6.Single UV lamp can be controlled independently;

7.Warning while short circuit;

8.Over temperature alarm, assure the products work well



FAQ

1.What's the wavelength of the UV LED lamp.

A: The wavelength of UV LED lamp usually are365-405nm. The wavelength for inkjet printer is

395nm, 385/395nm for printing machine,365nm for UVglue.

2.What's your LED chip brand?

A: The LED chip brand we use are LG, Epileds, Seoul, Nichia.

3.What's the cooling way?

A: We have water cooling and air cooling UV LED.

4.If the light intensity is adjustable?

A: Yes, the intensity is 0-100% adjustable. We designed different dimming system for different products.

Q5: Do you support OEM/ODM service?

Yes, we do have professional R&D team to offer OEM/ODM service.



180W quartz UVA Led Light Module led chip 365nm UV Led Module 395nm 0180W quartz UVA Led Light Module led chip 365nm UV Led Module 395nm 1





If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
