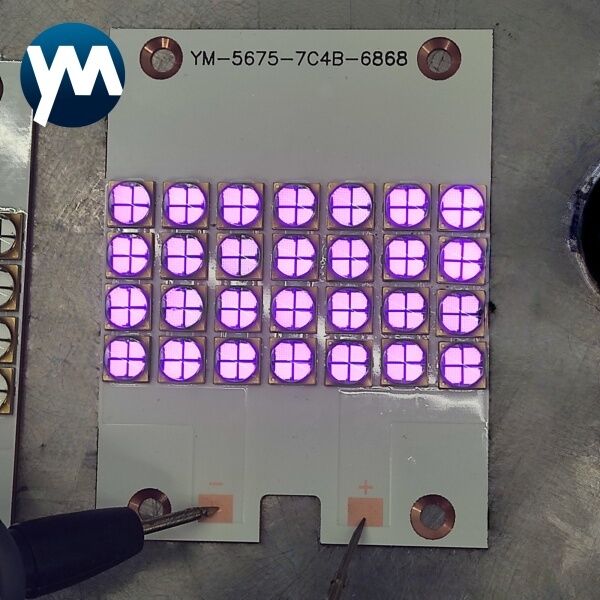

280W Splicing Curing Module From China 395nm Curing Lamp digital flexographic offset printing

Name: 280W Splicing Curing Module From China 395nm Curing Lamp digital flexographic offset printing
Brand: shenzhen yuanming co., ltd
SKU: YM-28KL5675 UV LED Module
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: YM

Certification: High-tech Enterprise Certificate

Model Number: YM-28KL5675 UV LED Module

Payment & Shipping Terms

Minimum Order Quantity: Negotiate

Price: Negotiate

Packaging Details: Carton

Delivery Time: 7-10 work days

Payment Terms: T/T

Supply Ability: 100000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                280W UV curing module, 395nm UV curing lamp, flexographic printing UV module


Product Name:	YM-28KL5675 UV LED Module	Power:	280W
Module Size:	56mm75mm2.0mm	Luminous Size:	56mm*30mm
Voltage:	45.5-52.5V	Current:	4-5.6A
LED Chips:	Optional(LG/Epileds/ Seoul)	Encapsulation Process:	High Temperature Quartz Lens Package
View Angle Of The Lens:	60 Degree	Warranty:	1 Year

Product Name:	YM-28KL5675 UV LED Module
Power:	280W
Module Size:	56mm75mm2.0mm
Luminous Size:	56mm*30mm
Voltage:	45.5-52.5V
Current:	4-5.6A
LED Chips:	Optional(LG/Epileds/ Seoul)
Encapsulation Process:	High Temperature Quartz Lens Package
View Angle Of The Lens:	60 Degree
Warranty:	1 Year

280W Splicing Curing Module From China 395nm Curing Lamp digital flexographic offset printing

UV LED Module 280W high power uv led module Line light source

1. Low energy consumption, just 20% of ordinary UV led lamp
2. Save 80% electrical energy compared with mercury lamp
3. Mercury-free, ozone-free, eco-friendly
4. Cold light source, low working temperature
5. Stable light output with high irradiation uniformity
6. Multiple control modes: constant current, pedal, intelligent and manual mode
7. Integrated modular design, easy installation and replacement
8. Compact size, flexible layout for various equipment


			Product Name
			UV LED Module 5675

			Power
			280W

			Color
			UV

			Number of lamp beads
			28 pcs

			Diode type
			6565/6868 smd

			Lens Material of Diode
			Quartz

			View Angle of the Lens
			60 degree

			Module size
			56mm*75mm*2.0mm

			Luminous Size
			56mm*30mm

			Wavelength
			365nm,385nm,395nm,405nm

			Voltage
			45.5-52.5V

			Current
			4-5.6A

			Chip Material
			LG,Seoul,Epileds

			Encapsulation process
			High temperature quartz lens package

			Module material
			Copper substrate

			Lifespan (hours)
			20000

			Warranty
			1 year

			Application
			Apply in various UV printing industries, painting,

			Place of Origin
			Shenzhen, Guangdong, China

280W Splicing Curing Module From China 395nm Curing Lamp digital flexographic offset printing 0

About US

Shenzhen YM Technology Co., Ltd. specializes in the production and operation of high-power
UV LED curing light source products, and produces hundreds of high-power UV LED light packaging
products. The product power range is from 0.5W to 10000W. Mainly used for flexographic printing
machines, printing machines, pad printing machines, screen printing machines, offset printing machines,
coating machines, exposure machine, inkjet printing machine, coating, leather, glass, metal, furniture,
car paint detection, fluorescence detection, pet urine detection,PCB and other UVink Photocuring.

Application of UV Led Curing System

Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry,

furniture industry, etc.

It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers

includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.

FAQ

Q1: Could we order small?

Yes, Welcome to contact us for small order.

Q2: How can I get your price list and Catalog?

Send an enquiry to us, our sales will reply you soon with price list and Catalog.

Q3: Can I get a sample to check the quality before bulk order?

Yes, sure. Welcome to test samples.

Q4: Any certificates for your products?

All our products do have CE, ROHS certificates.

Q5: Do you support OEM/ODM service?

Yes, we do have professional R&D team to offer OEM/ODM service.

If you have other needs, please contact us to provide you with the best solution.

Umi@ymleduv.com , Thank you for your attention.
