Product Details
Place of Origin: CHINA
Brand Name: YM
Certification: High-tech Enterprise Certificate
Model Number: UV LED COB Module 5256-2
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 100000
Product Name: |
COB UV LED Module 5256-2 |
Power: |
180W |
Module Size: |
56*52MM |
Luminous Size: |
25MM*25MM |
Voltage: |
34-38V |
Current: |
3-4.2A |
LED Chips: |
Epileds |
Encapsulation Process: |
High Temperature Quartz Lens Package Lamp |
View Angle Of The Lens: |
180 Plane |
Warranty: |
1-2 Years |
Product Name: |
COB UV LED Module 5256-2 |
Power: |
180W |
Module Size: |
56*52MM |
Luminous Size: |
25MM*25MM |
Voltage: |
34-38V |
Current: |
3-4.2A |
LED Chips: |
Epileds |
Encapsulation Process: |
High Temperature Quartz Lens Package Lamp |
View Angle Of The Lens: |
180 Plane |
Warranty: |
1-2 Years |
COB UV LED Module 90W High-power curing COB module uv led cob led ultraviolet

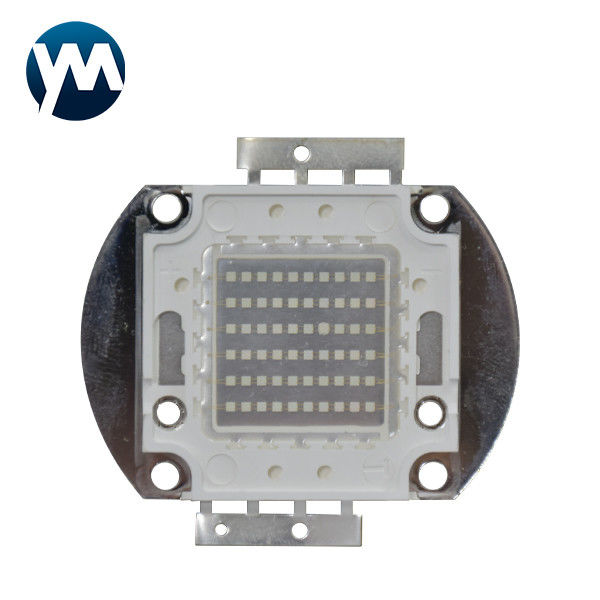

COB UV LED Module Product Description
| Product Name | COB UV LED Module 5256-2 |
| Power | 180W |
| Color | UV |
| Number of lamp beads | 60 pcs |
| Diode type | COB smd |
| Lens Material of Diode | quartz |
| View Angle of the Lens | 180 plane |
| Module size | 56*52mm |
| Luminous Size | 25*25mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 34-38V |
| Current | 3-4.2A |
| Chip Material | Epileds |
| Encapsulation process | High temperature quartz lens package lamp |
| Module material | COB Copper substrate |
| Lifespan (hours) | 20000-30000 |
| Warranty | 2 years |
| Application | Apply in various UV printing industries, painting, |
| Place of Origin | Shenzhen, Guangdong, China |
Reason to select US?
1) Fiar pricing
Our prices are wholesale factory prices.
2) Quality Control
Our manufacturing team is based of highly skilled professional which check quality of every product before shipping.
3) Customization options
We provide customized products according to your needs.
FAQ
Q1. Are you a factory?
A: Yes! We are a factory in Shenzhen. We have been producing UV LED products for seven years.
Q2. What are your main products?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV equipment.
Q3. How to choose UV LED light source?
A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very important factors when choosing LED light source.
The higher, the better. Besides, brand of LED chip, LED base and other materials will influence the product reliability.
Q4. Why choose YuanMing UV LED?
A: Client-oriented, technology first, hornest operation is our business philosophy. YuanMing always treat the clients benefit as the most important thing. So, we use the top brand material to produce high quality product. Also, YuanMing is not only a manufacturer for UV LEDs and modules, but also a lighting application solution provider for all your UV LED needs, we can be your lighting consultant whenever you need.
Q5. If i order in bulk quantities will there be any discount?
A: Yes in case you are ready to order in bulk or do customization we can give you wholesale prices.
Q6. What cooling methods do you implement?
A: Air cooling is the most common method for cooling UV LEDs, Water cooling is also a good alternative. We have a lot of products that implement water cooling as well.
Q7. Can your products adjust the UV light intensity ?
A: Sure, you can adjust and use dimmers with our products and control the light intensity from 0% to 100%.
Q8. What is the expected lifetime of a UV LED ?
A: If carefully used a UV LED has a lifetime of 2-3 years. Working hors of a UV LED is around 20,000H
If you have other needs, please contact us to provide you with the best solution.
