Product Details
Place of Origin: CHINA
Brand Name: YM
Certification: High-tech Enterprise Certificate
Model Number: UV LED COB Module 90W
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Carton
Delivery Time: 10-15 work days
Payment Terms: T/T
Supply Ability: 10000
Product Name: |
COB UV LED Module 90W |
Module Size: |
40mm*40mm |
Luminous Size: |
20mm*20mm |
Voltage: |
34-38V |
Product Name: |
COB UV LED Module 90W |
Module Size: |
40mm*40mm |
Luminous Size: |
20mm*20mm |
Voltage: |
34-38V |

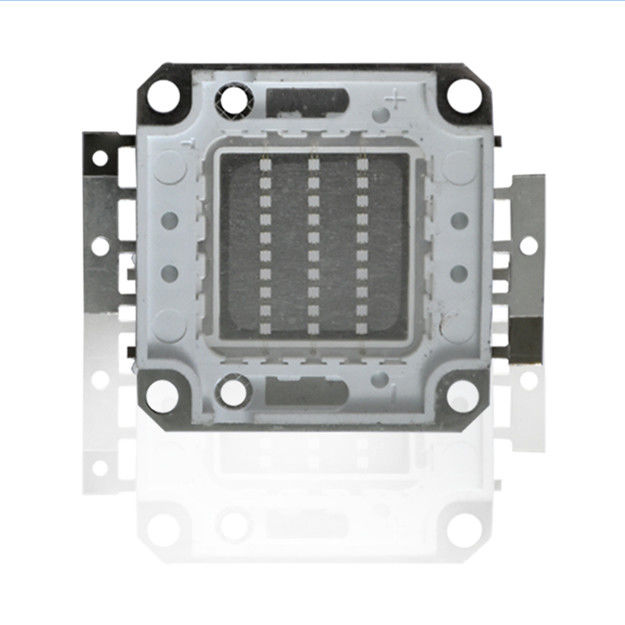

90W COB UV LED Module UV Curing Light UV Curing System High Power 365nm 395nm
COB UV LED Module Product Description
The product can be applied with either Water-cooling or wind-cooling method.
Other curing size and voltage can be designed according your requirment, inluding mix
wavelenth special wavelenth and curing size.
High efficiency and low consumption.
Apply in various printing industries.
| Item | High Power COB UV LED Module |
| Power | 90w |
| Color | UV |
| Diode Brand | DC, LG |
| Diode type | COB |
| Lens Material of Diode | COB |
| Module size | 40mm*40mm |
| Luminous Size | 20mm*20mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 34-38V |
| Current | 1.5-2.1A |
| Chip Material | Epileds |
| Encapsulation process | COB |
| Lifespan (hours) | 20000-30000 |
| Warranty | 2 years |
| Place of Origin |
Guangdong, China |
Feature of UV LED Module
• High power and efficiency, high reliability
• Long operation lifetime, low light failure
• Environmental protection, energy saving
• Zener diode protection device
Warm tips, in order to make our products play the best performance and reduce customer failure in the use of products, please note:
1) During the whole process of use, all people who are in direct contact with UVLED should take measures to prevent and eliminate static electricity, and do not touch the UV light emitting diode directly with their hands.
2) When welding, attention should be paid to the welding time and temperature, and the positive and negative polarities should be distinguished.
3) Electrical parameters such as current and voltage should not exceed the rated values.
If you have other needs, please contact us to provide you with the best solution.
